Horn: Service and Repair

Horn Replacement




REMOVAL PROCEDURE
1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the electrical connections from the horn from under the left front fascia.

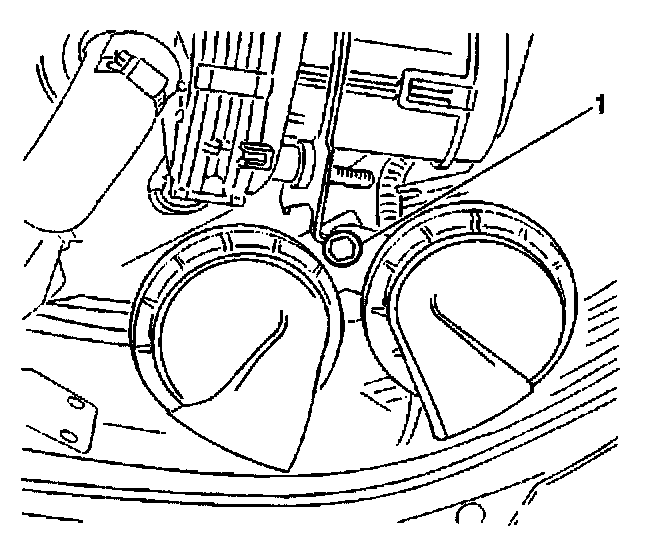

3. Remove the horn bracket bolt (1).
4. Remove the horn bracket with the horns attached from the vehicle.
5. Remove the applicable horn bolt from the bracket.
6. Remove the horn from the bracket.

INSTALLATION PROCEDURE
1. Install the horn to the bracket.

2. Install the horn bolt to the bracket (1).

Tighten
Tighten the horn bolt to 12 N.m (106 lb in).

3. Install the electrical connections to the horns.
4. Lower the vehicle.
