Fog and Cornering Lamp Replacement
Fog and Cornering Lamp ReplacementREMOVAL PROCEDURE
1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

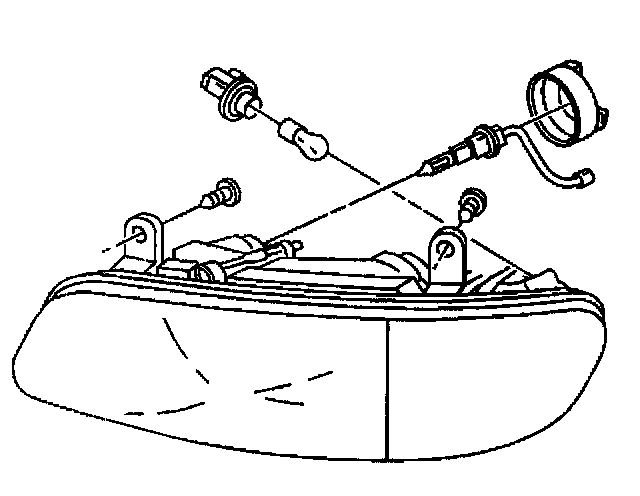

2. Remove the Corning lamp socket from the fog and cornering lamp.
3. Remove the wire harness from the loom on the fog and cornering lamp.
4. Remove the electrical connections from the fog and cornering lamp.
5. Remove the screws from the fog and cornering lamp.
6. Remove the fog and cornering lamp.

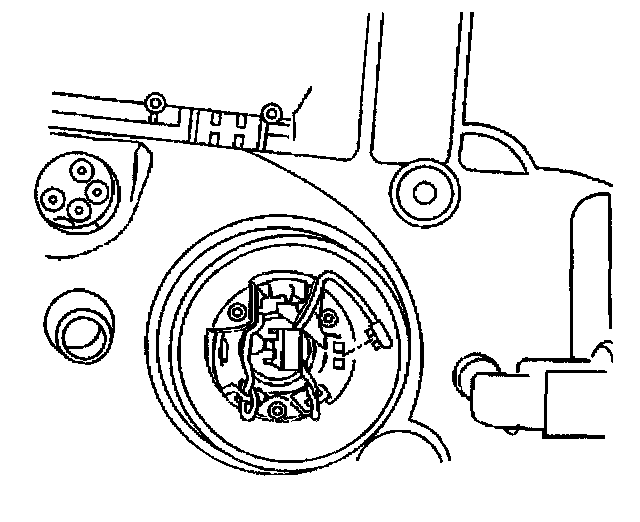

7. Transfer the fog lamp bulb.
INSTALLATION PROCEDURE

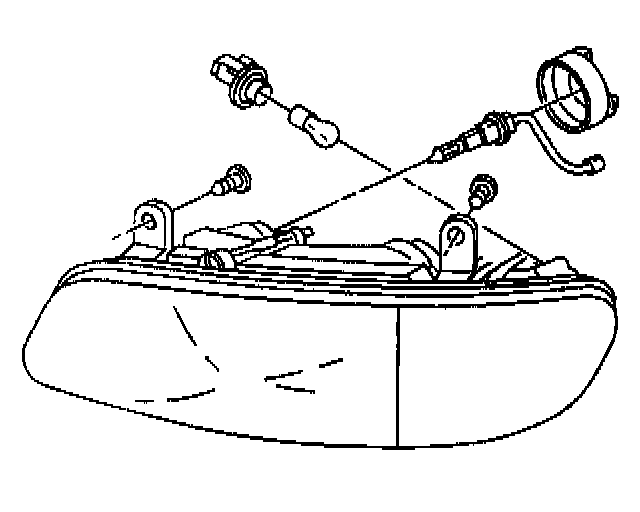

1. Install the fog and cornering lamp.
2. Install the fog and cornering lamp screws.
Tighten
Tighten the fog and cornering lamp screws until fully seated. Ensure not to strip the fog and cornering lamps screws.
3. Install the electrical connections to the fog and cornering lamp.
4. Install the wire harness to the loom on the fog and cornering lamp.
5. Install the cornering lamp socket to the fog and cornering lamp.
6. Lower the vehicle.
