Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Connector Views >> LH Fog Lamp

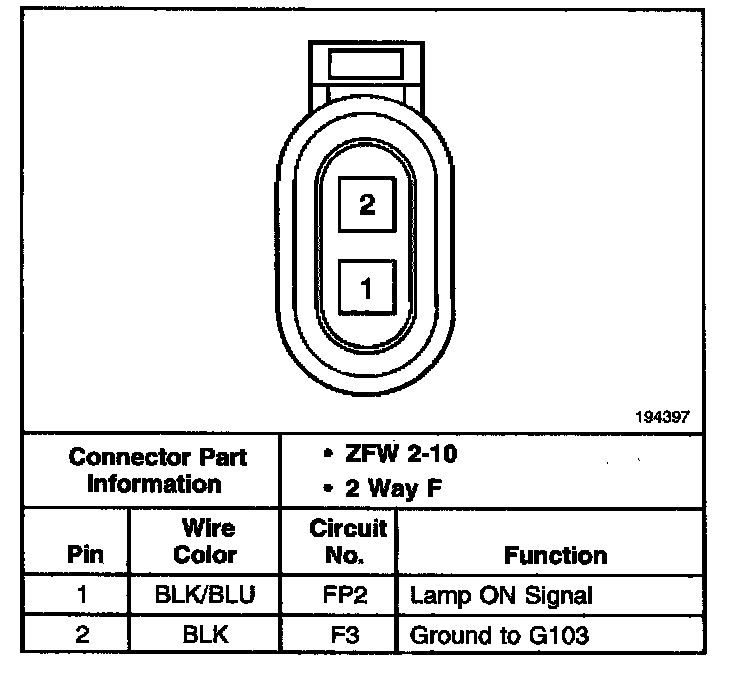

LH Fog Lamp

LH Fog Lamp:
