Sunshade Mirror LPS, Dome and Reading LPS and I/P COMP LP

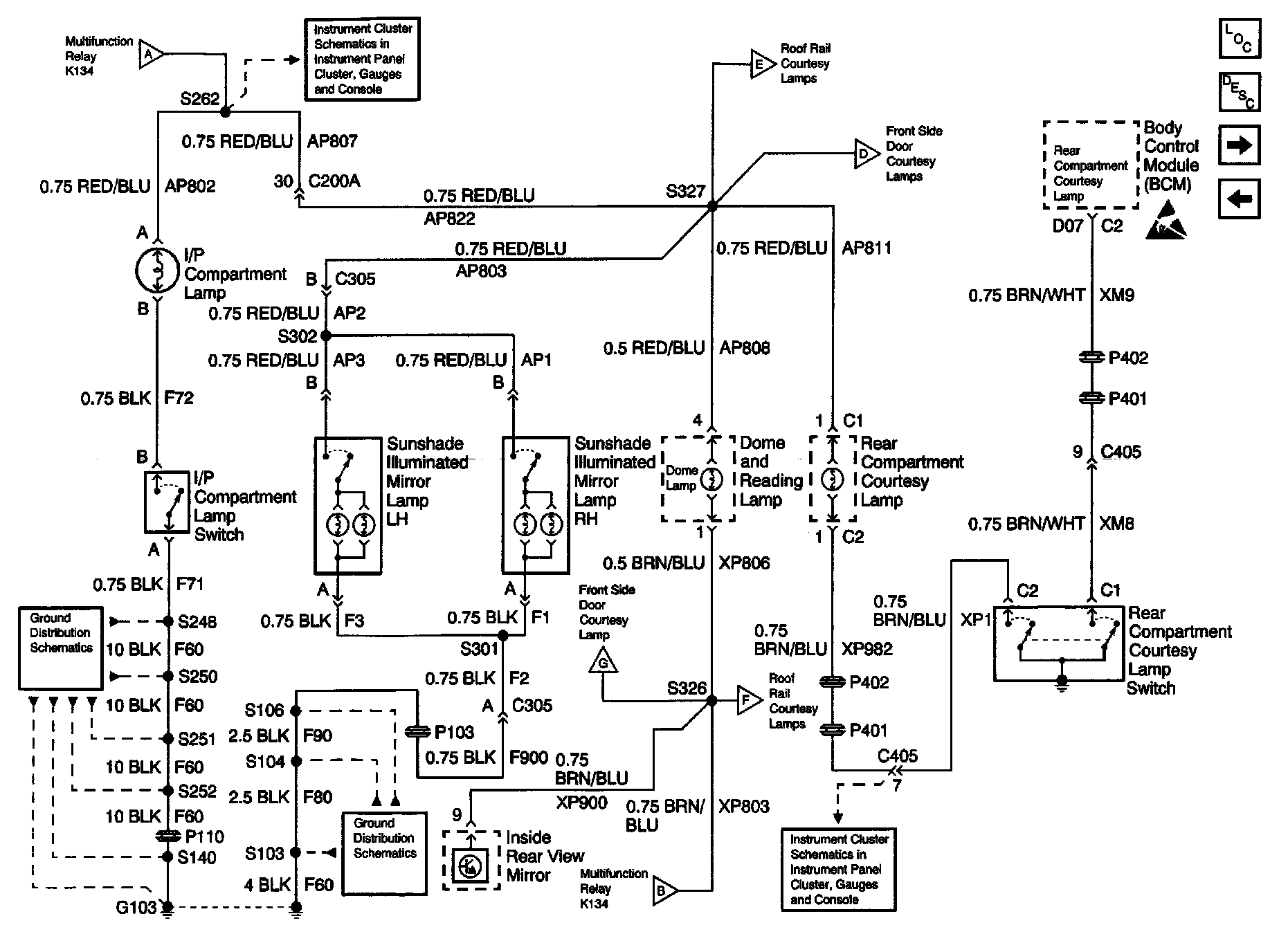

Interior Lights Schematics: Sunshade Mirror Lamps, Dome And Reading Lamps And I/P Compartment Lamp:
