Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Courtesy Lamps and Dome and Reading Lamps

Courtesy Lamps and Dome and Reading Lamps

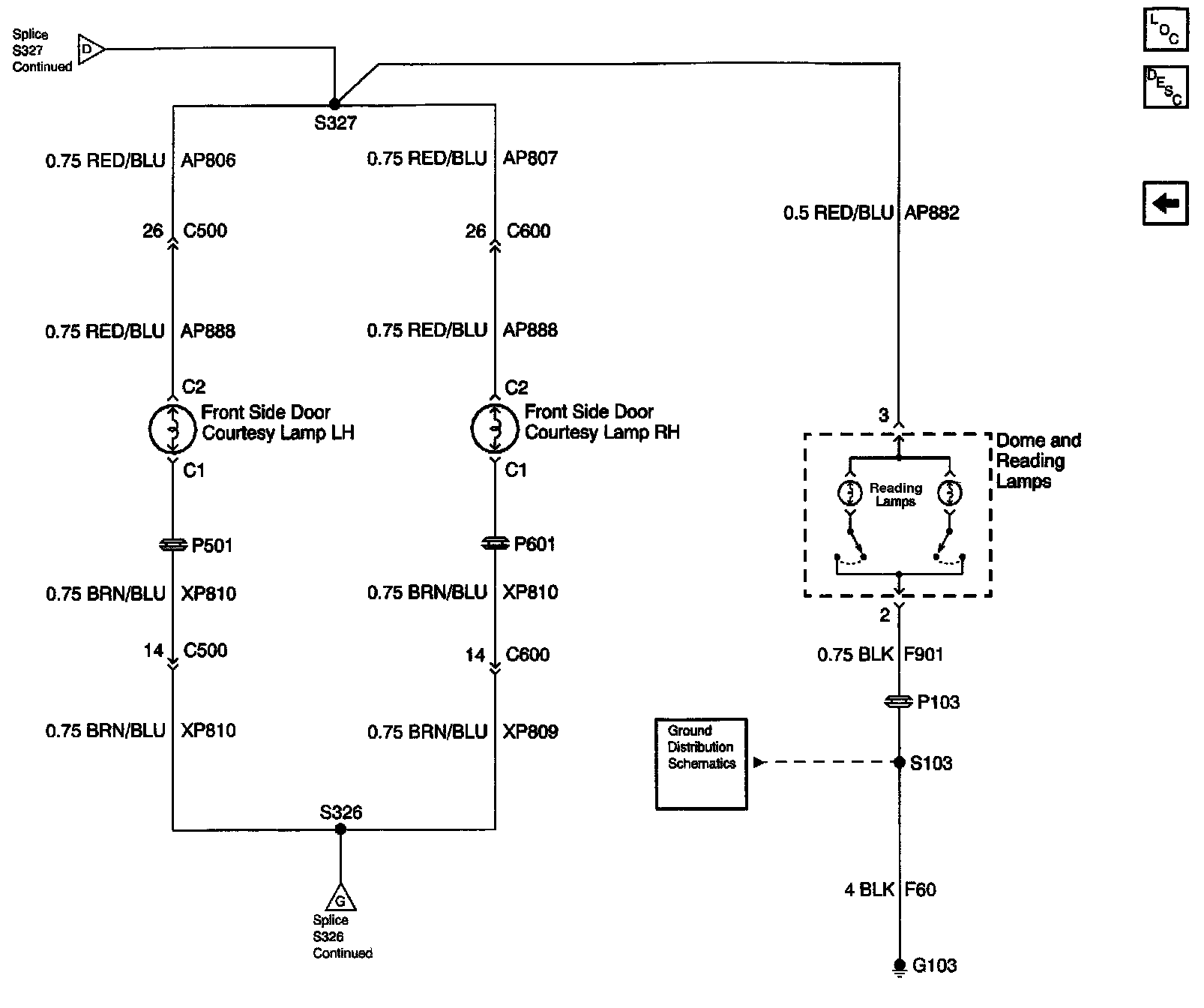

Interior Lights Schematics: Courtesy Lamps And Dome And Reading Lamps:
