BCM, Multifunction Relay K134 and LH Front Side Door Jamb SW

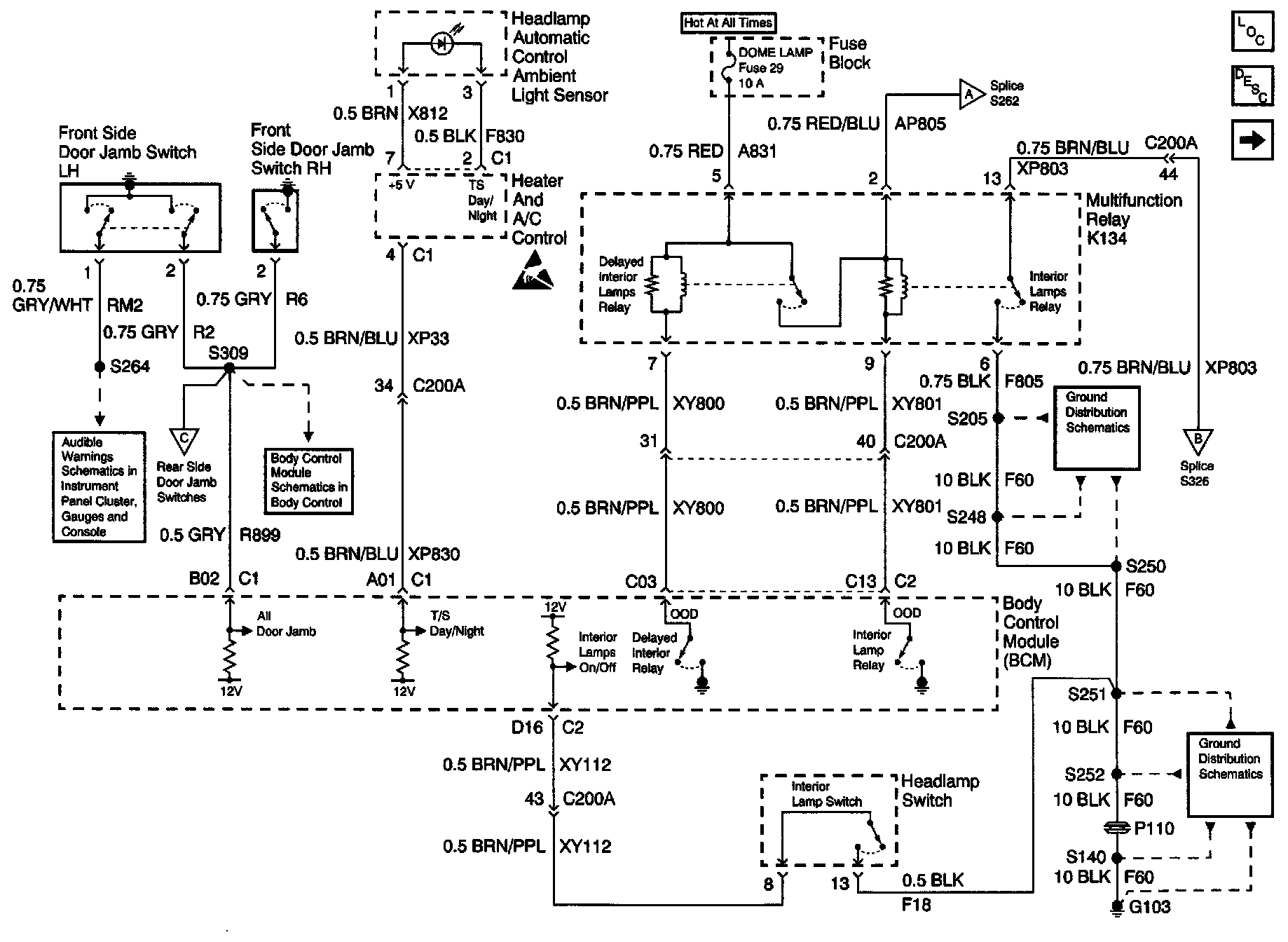

Interior Lights Schematics: BCM, Multifunction Relay K134 And LH Front Side Door Jamb Switch:
