IP Compartment Lamp Replacement

IP Compartment Lamp Replacement

REMOVAL PROCEDURE

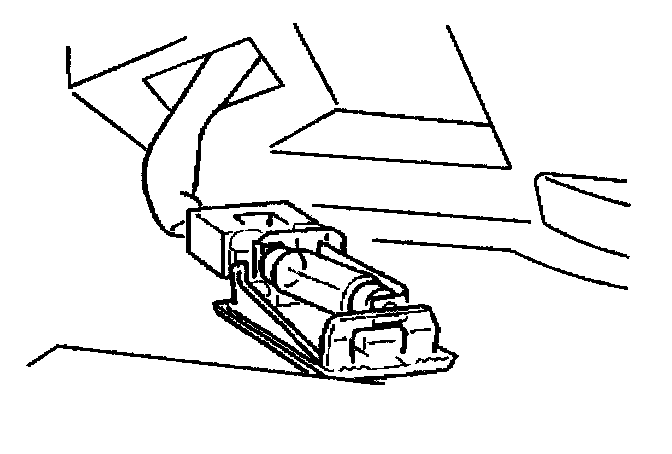

1. Use a fiat tipped tool to carefully lever out the instrument panel compartment lamp from the top of the compartment to remove the instrument panel compartment lamp.




2. Remove the instrument panel compartment bulb.

INSTALLATION PROCEDURE




1. Install the instrument panel compartment bulb.
2. Snap the instrument panel compartment lap into the top of the compartment to install.
