Ash Tray Lamp: Service and Repair

Ashtray Lamp Replacement

REMOVAL PROCEDURE




1. Open the ashtray.
2. Push the gray tab to the right to release the tray.
3. Remove the tray.




4. Remove the ashtray assembly screw located behind the top of the assembly.
5. Remove the ashtray assembly.

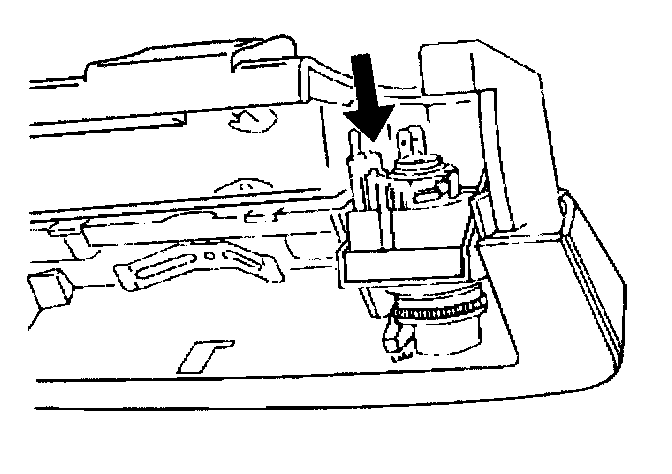

6. Remove the bulb from the bulb socket.

INSTALLATION PROCEDURE




1. Install the bulb to the bulb socket.




2. install the ashtray assembly to the dash.
3. Install the ashtray assembly screw.

Tighten
Tighten the ashtray assembly screw until fully seated. Ensure not to strip the ashtray assembly screw.




4. Snap in the ashtray.
5. Close the ashtray.
