Backup Lamp: Service and Repair

Backup Lamp Bulb Replacement

REMOVAL PROCEDURE




1. Open the rear compartment lid.

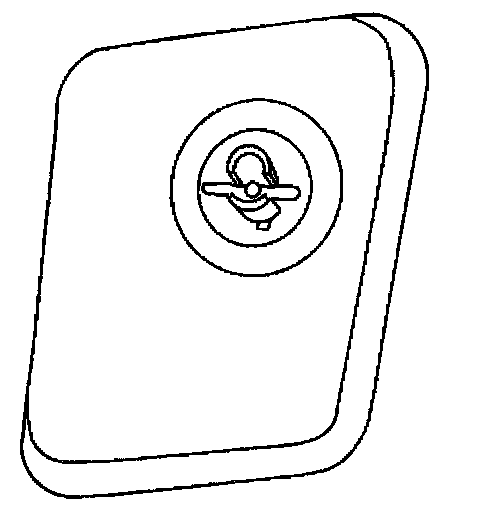

2. Remove the backup lamp cover.

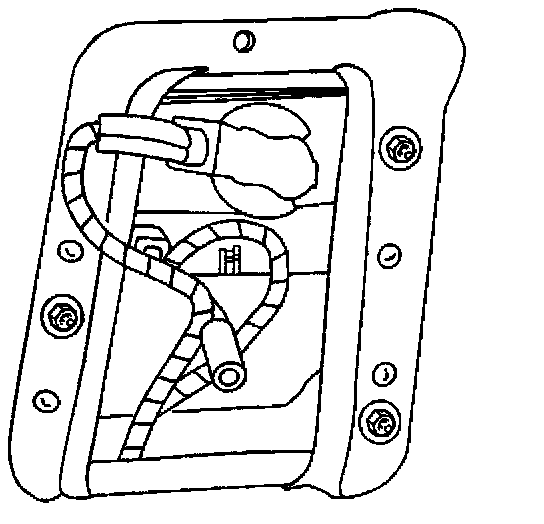

3. Remove the bulb socket from the backup lamp.
4. Remove the bulb from the bulb socket.

INSTALLATION PROCEDURE




1. Install the bulb to the bulb socket.
2. Install the bulb socket to the backup lamp.




3. Install the backup lamp cover.
4. Close the rear compartment lid.
