Instrument Panel (IP) - Accessory Trim Plate Replacement

REMOVAL PROCEDURE




1. Remove the front ashtray.

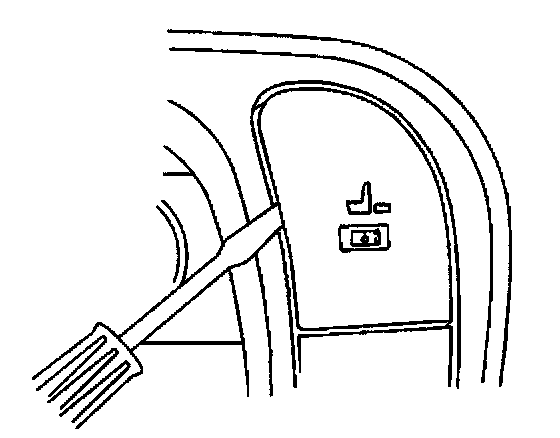

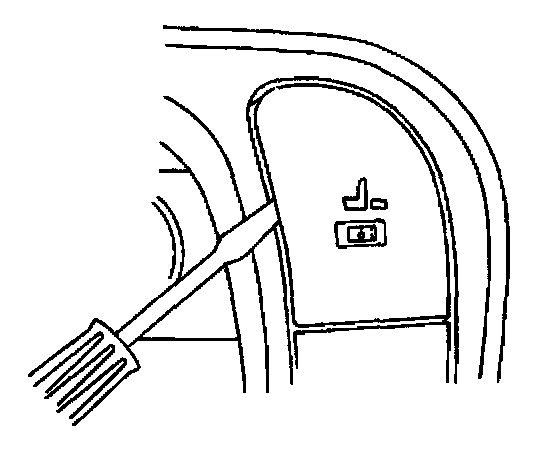

2. Remove the passengers heated seat switch.




3. Remove the traction control switch.
4. Remove the trunk switch.

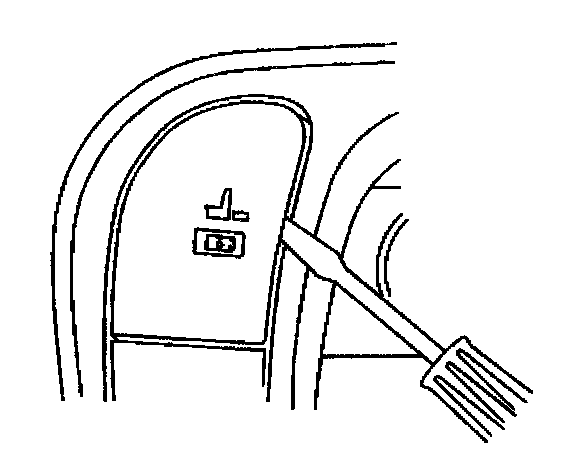

5. Remove the drivers heated seat switch.

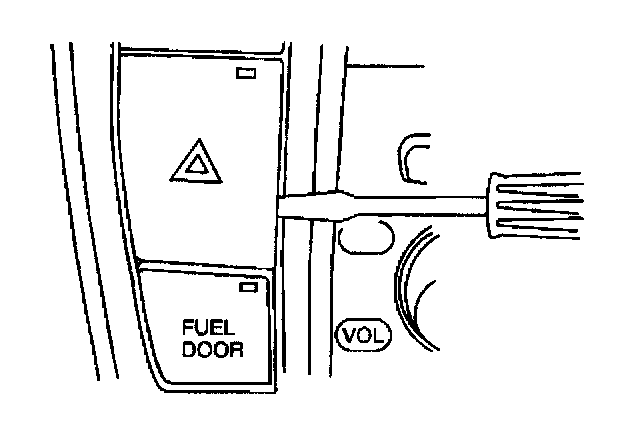

6. Remove the hazard switch.

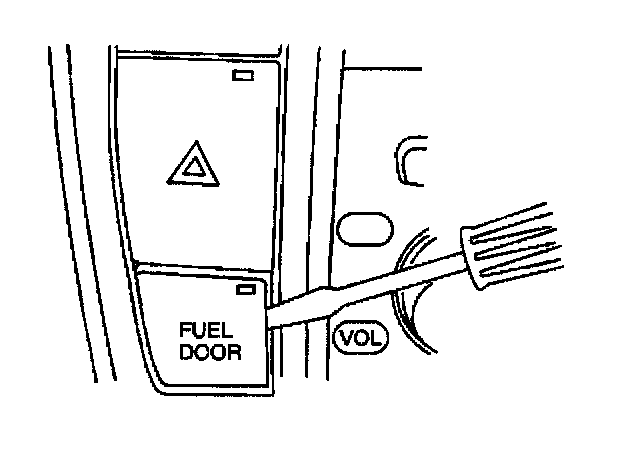

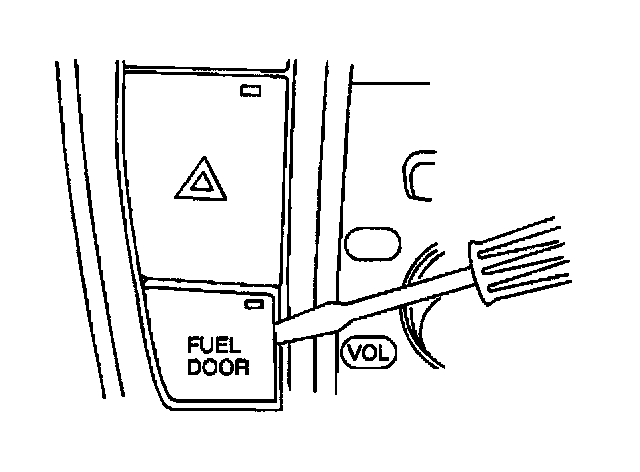

7. Remove the fuel door switch.




8. Remove the radio bezel screw covers.

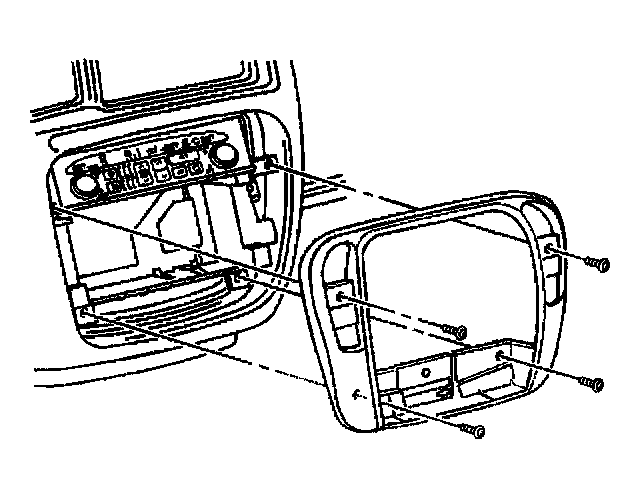

9. Remove the radio bezel screws

IMPORTANT: Mark the position of the switch electrical connectors before removing from the radio trim bezel for reinstallation.

10. Remove the traction control and hazard switch electrical connectors from the bezel by sliding out.
11. Remove the trunk, fuel door, and heated seat switch wiring connectors from the bezel
12. Remove the ashtray electrical connector from the bezel.
13. Remove the radio bezel from instrument panel.

INSTALLATION PROCEDURE




1. Install the ashtray electrical connector to the bezel.
2. Install the trunk, fuel door, and heated seat switch wiring connectors to the radio trim bezel.
3. Install the traction control and hazard switch electrical connectors to the radio trim bezel by sliding in place.
4. Install the radio bezel to instrument panel.
5. Install the radio bezel screws.

Tighten
Tighten the radio bezel screws until fully seated but not stripped.

6. Install the radio bezel screw covers.




7. Install the drivers heated seat switch to the radio trim bezel.




8. Install the hazard switch to the radio trim bezel.




9. Install the fuel door switch.




10. Install the passengers heated seat switch to the radio trim bezel.




11. Install the traction control switch to the radio trim bezel.
12. Install the trunk switch to the radio trim bezel.
13. Install the front ashtray.
