Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> - Quick Look Up Troubleshooting Table - HVAC System - Automatic

- Quick Look Up Troubleshooting Table - HVAC System - Automatic

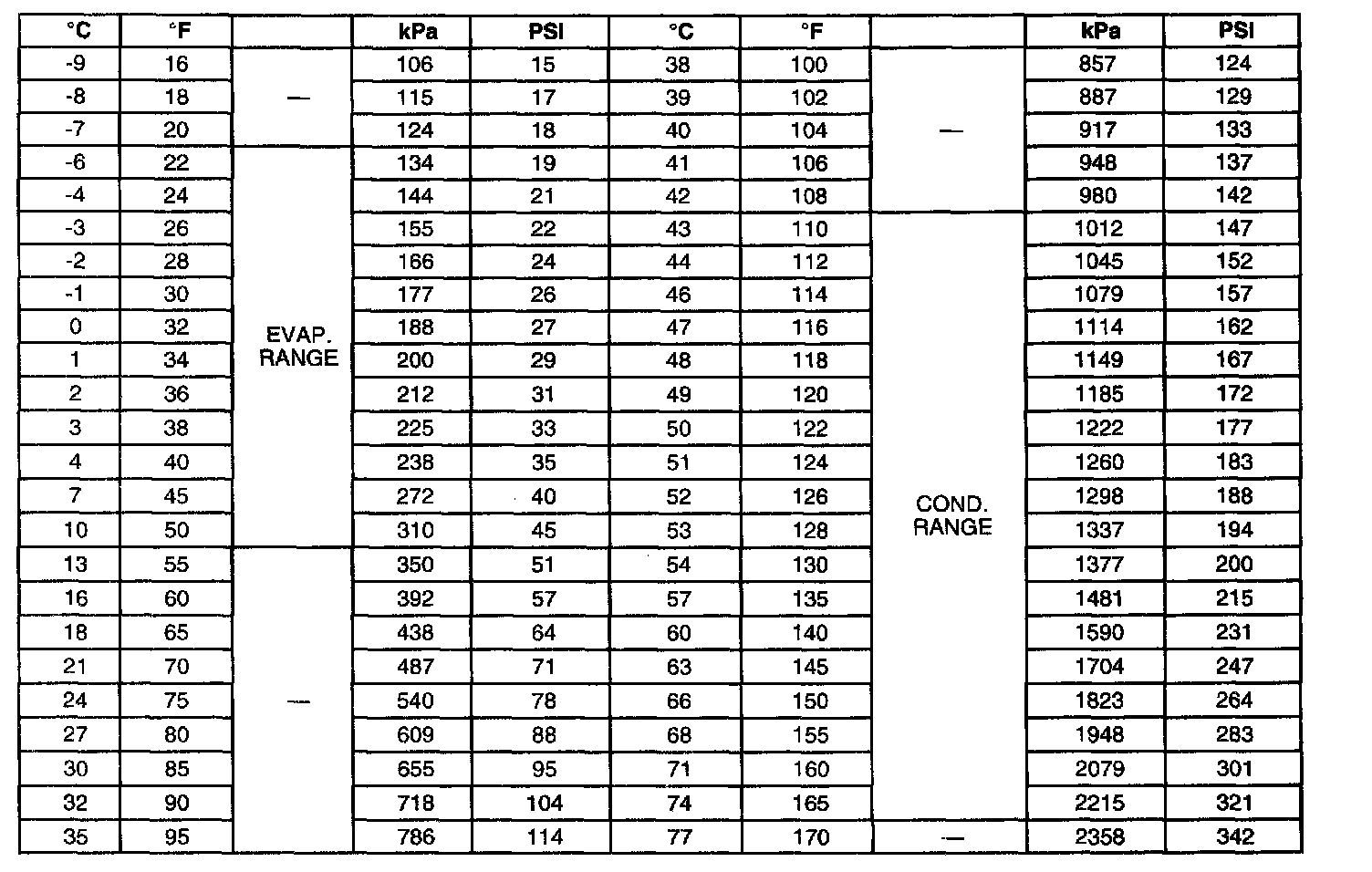

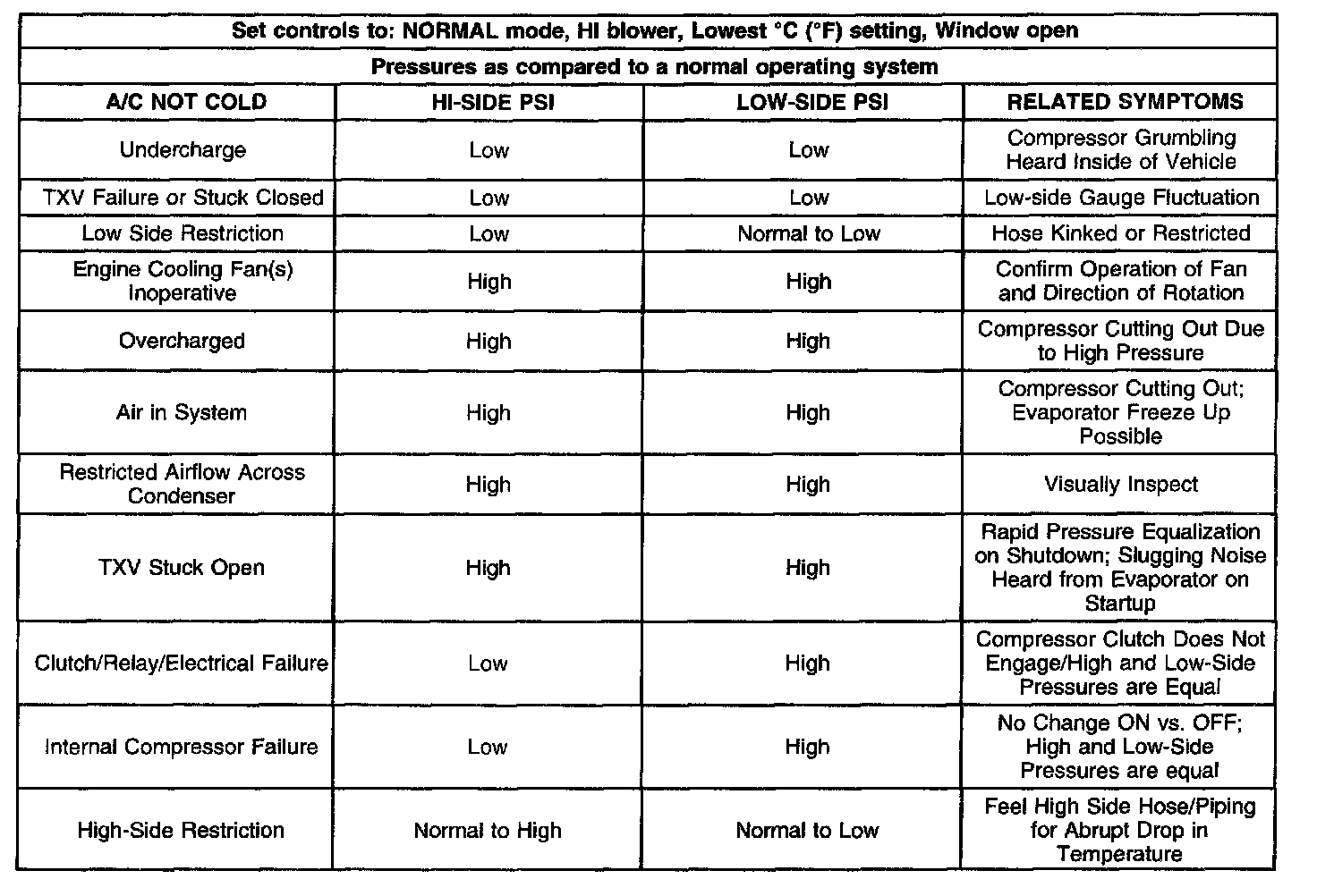

Quick Look-Up Troubleshooting Table:



Quick Look-Up Troubleshooting Table:
