Compressor Shaft Seal Removal

TOOLS REQUIRED
^ J 5403 Snap Ring Pliers
^ J 9553-01 O-ring Remover
^ J 23128-A Seal Seat Installer And Remover

IMPORTANT: Do not change a shaft seal because of small amounts of oil found on an adjacent surface. The seal allows some oil to pass for lubrication purposes. Change the shaft seal when the following conditions exist:

^ A large amount of sprayed oil is found.
^ Actual refrigerant leak is found, using a J 39400-A or equivalent.




1. Remove the clutch plate and hub assembly.

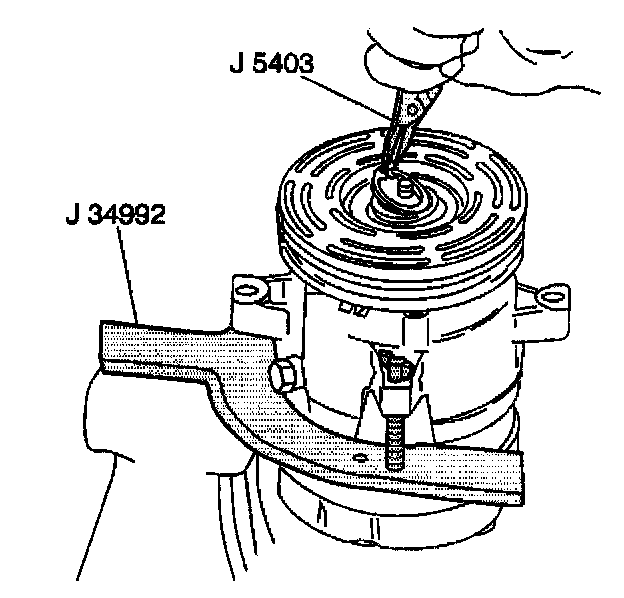

2. Remove the shaft seal retaining ring using the J 5403.
3. To prevent dirt or foreign material from damaging the compressor thoroughly clean the following parts:
^ The inside of the compressor neck area surrounding the shaft
^ The exposed portion of the seal
^ The compressor shaft
^ The O-ring groove

IMPORTANT: Securely hand-tighten the handle of the J 23128-A. Do not use a wrench or pliers.




4. Fully engage the knurled tangs of the J 23128-A into the recessed portion of the seal by turning the handle clockwise.
5. Remove the seal from the compressor using a rotary-pulling motion. Discard the seal.

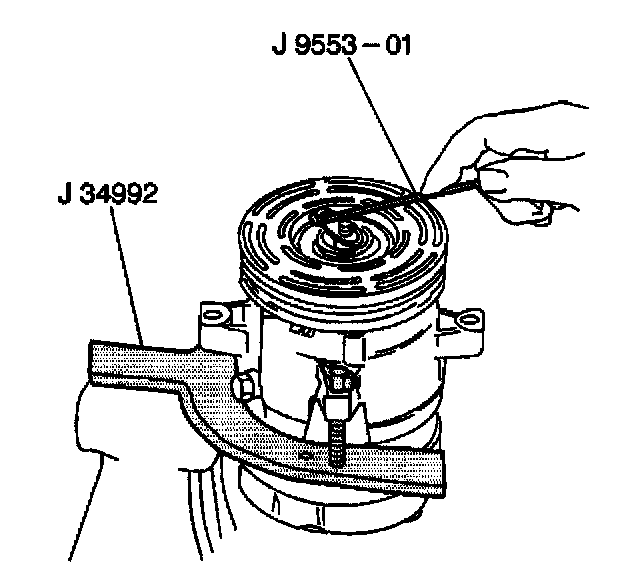

6. Remove the seal O-ring from the compressor neck using the J 9553-01. Discard the seal O-ring.
7. Inspect the shaft and the inside of the compressor neck again for dirt and foreign material.
8. Ensure that the shaft and the inside of the compressor neck are perfectly clean prior to installing new parts.
