Compressor Clutch Plate and Hub Assembly Removal

TOOLS REQUIRED
^ J 33022 Shaft Nut Socket
^ J 33027-A Clutch Hub Holding Tool
^ J 33013-B Hub And Drive Plate Remover And Installer
^ J 34992 Compressor Holding Fixture




1. Clamp the J 34992 in a vise.
2. Attach the compressor to the holding fixture using the thumb screws.

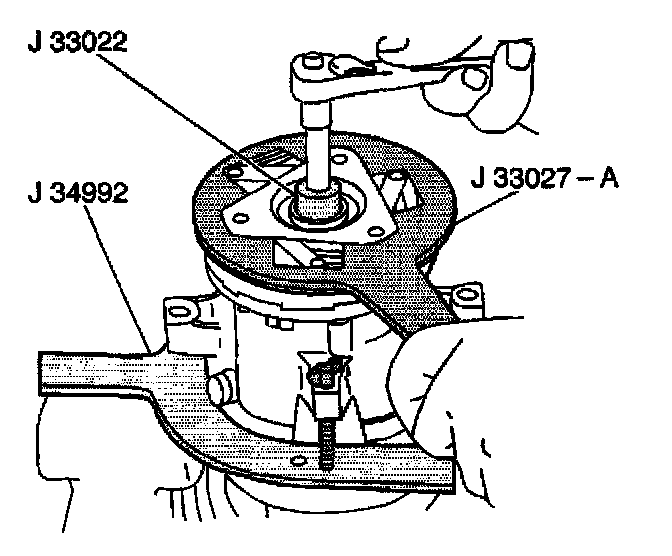

3. Use the J 33027-A to prevent the clutch hub and drive plate assembly from turning.
4. Use the J 33022 to remove the shaft nut.




5. Thread the J 33013-B into the hub.
6. Use a wrench to hold the body of the J 33013-B.
7. Turn the center screw into the body of the J 33013-B to remove the clutch plate and hub assembly.
8. Remove the shaft key.
