Air Outlet Replacement - Center

REMOVAL PROCEDURE

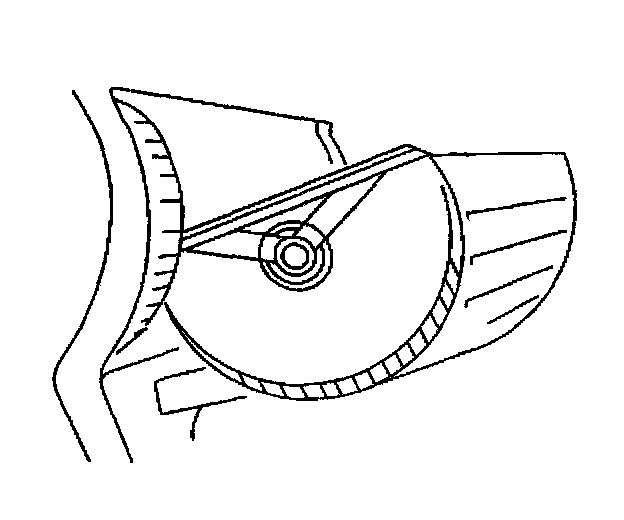

1. Remove the center outer air deflectors.




2. Remove the center air deflector screws.
3. Remove the center air deflector.

INSTALLATION PROCEDURE




1. Install the center air deflector.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the center air deflector screws.

Tighten
Tighten the center air deflector screws until fully seated but not stripped.




3. Install the center outer air deflectors, angle the channels (1) on the center deflector to install.
