Catalytic Converter Description





The three way catalytic converter is an emission control device designed to reduce un-burned exhaust gases.

The three way catalyst lowers the following levels:
^ Oxides of nitrogen (NO3)
^ Hydrocarbons (HC)
^ Carbon monoxide (CO)

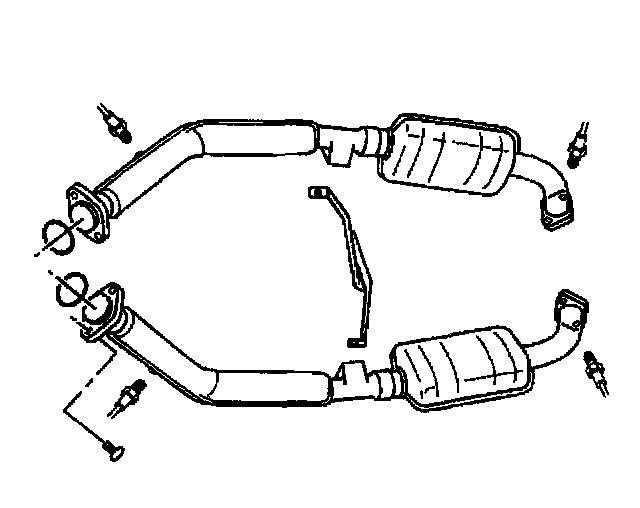

This vehicles uses a dual catalytic converter system. The dual catalytic converter system is a warm-up three way catalytic converter.

The catalytic converter catalysts coatings contain the following:
^ Platinum
^ Rhodium
