Camshaft Replacement (Left)
CAMSHAFT REPLACEMENT (LEFT)
Removal Procedure
^ Tools Required
- J 42069 Timing Belt Alignment Kit
- J 35268-A Camshaft/Front Main Seal Installer
- J 42098 Crank Hub Torx Socket
1. Remove the intake plenum. Intake Plenum Replacement
2. Remove the intake air resonator. Service and Repair
3. Remove the LH camshaft cover. Camshaft Cover Replacement (Left)
4. Remove the timing belt cover. Service and Repair
5. Remove the timing belt. Timing Belt Replacement
6. As a precaution, rotate the crankshaft counterclockwise to the 60 degrees BTDC position to prevent valve/piston contact.

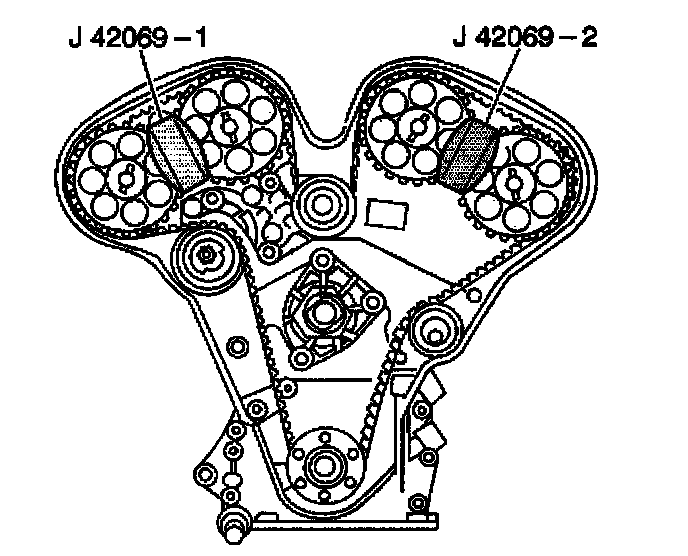

7. Insert the J 42069-2 into the camshaft gears.
8. Loosen the camshaft gear bolt.
9. Remove the J 42069-2.
10. Remove the camshaft gear bolt.
11. Remove the camshaft gear.
Important: Ensure the camshaft is not under load from one or more of the lifters or the camshaft will bind upon removal.
12. Loosen the camshaft bearing cap bolts sequentially starting from the center and moving outwards in a spiral direction.
13. Remove the camshaft bearing cap bolts.
14. Remove the camshaft bearing caps. Note the code marks on the bearing caps (R1, R2, R3, etc.).
The bearing caps for the drivers side cylinder head is marked with an R, followed by a number.
15. Remove the camshaft with seal attached.
16. Remove the camshaft seal.
17. Clean all of the bearing surfaces.
18. Clean all of the sealing surfaces.
Installation Procedure
^ Tools Required
- J 42069 Timing Belt Alignment Kit
- J 35268-A Camshaft/Front Main Seal Installer
- J 42098 Crank Hub Torx Socket
- J 36660-A Torque/Angle Meter
1. Lubricate the camshaft bearing surfaces with GM P/N 1052367 or equivalent.
Important: Ensure the pin on the exhaust camshaft is approximately in the 12 o'clock position and/or that the pin on the intake camshaft is approximately in the 7 o'clock position to allow for minimal load on the camshaft when installing the bearing caps.
2. Install the camshaft to the cylinder head.
Camshaft Identification
^ The intake is marked with green paint between bearings 2 & 3 and has a code A cast into it near the number one bearing surface.
^ The exhaust is marked with gray paint between bearings 2 & 3 and has a code E cast into it near the number one bearing surface.
Important: DO NOT allow the sealer to get into the oil journal of the cap.
3. Apply a small amount of Loctite 573 or equivalent on the forward edge of the front bearing caps to ensure an adequate seal between the bearing cap and the cylinder head.
4. Install the camshaft bearing caps in their appropriate position.
Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
5. Install the camshaft bearing cap bolts.
Tighten the camshaft bearing cap bolts evenly, starting from the center cap moving outward to 8 Nm (71 inch lbs.).
6. Coat the lip of the camshaft seal with a small amount of GM P/N 12377985, chassis grease or equivalent, to aid in installation.
7. Use the J 35268-A to tap the camshaft seal into place.
Ensure the camshaft seal is fully and evenly seated.
8. Install the camshaft gear bolt.
Important: Use a new camshaft gear bolt. The required tightening method will stretch the bolt, therefore the old bolt is not reusable.
^ Use J 42069-2, to hold the camshaft gear and the camshaft in place while tightening the camshaft gear bolt.
^ Tighten the camshaft gear bolt to 50 Nm (37 ft. lbs.) + 60 degrees + 15 degrees with the J 36660-A.
9. Return the crankshaft to TDC.
10. Install the timing belt.
11. Install the front timing belt cover.
12. Install the LH camshaft cover.
13. Install the intake plenum.
14. Install the intake air resonator.
15. Connect the battery negative cable.
