WSW Pump, WSW Nozziwa and Gauge Cluster

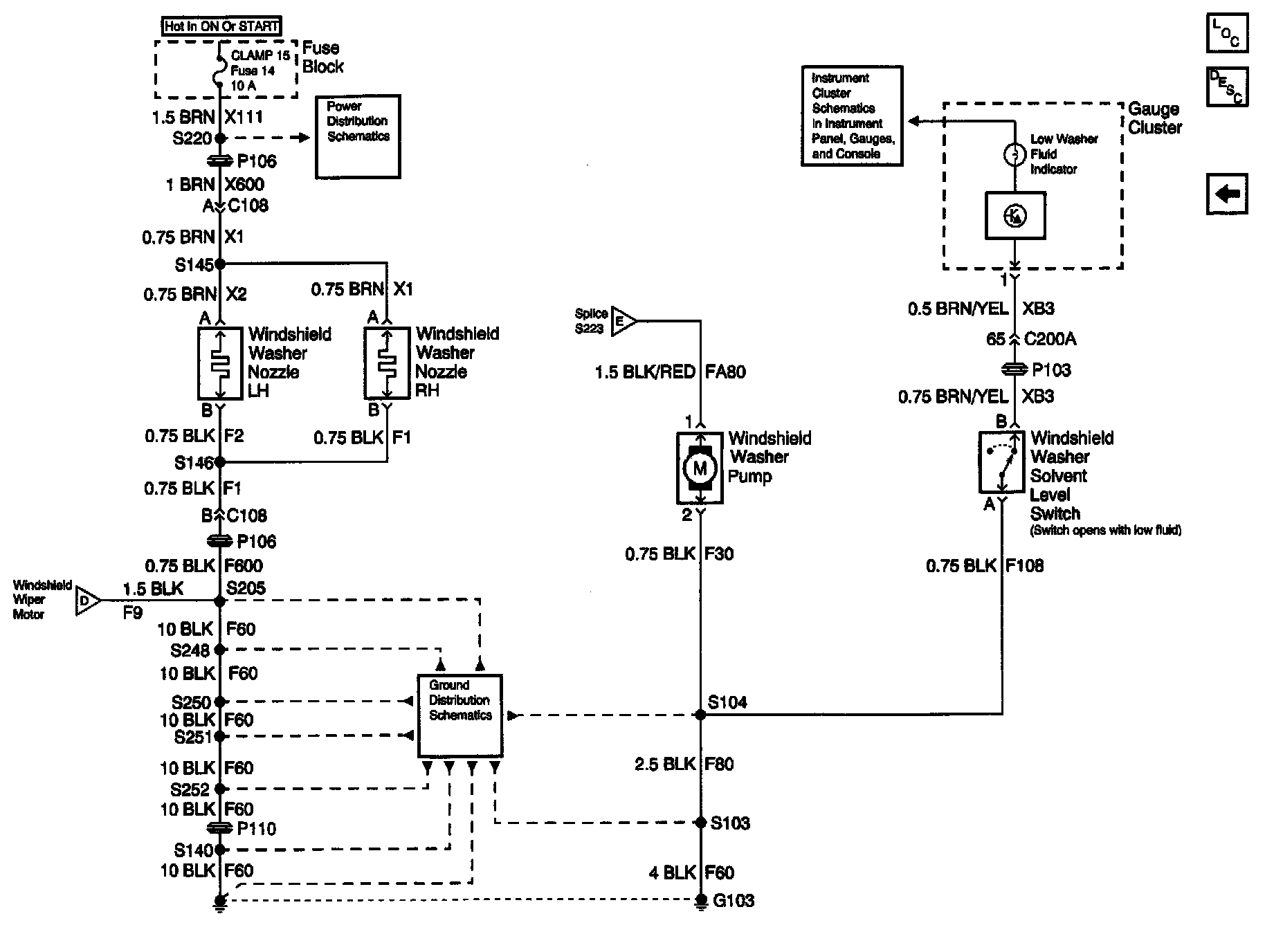

Wiper/Washer System (Pulse) Schematics: WSW Pump, WSW Nozziwa And Gauge Cluster:
