Power Window Switches & Regulator Motors

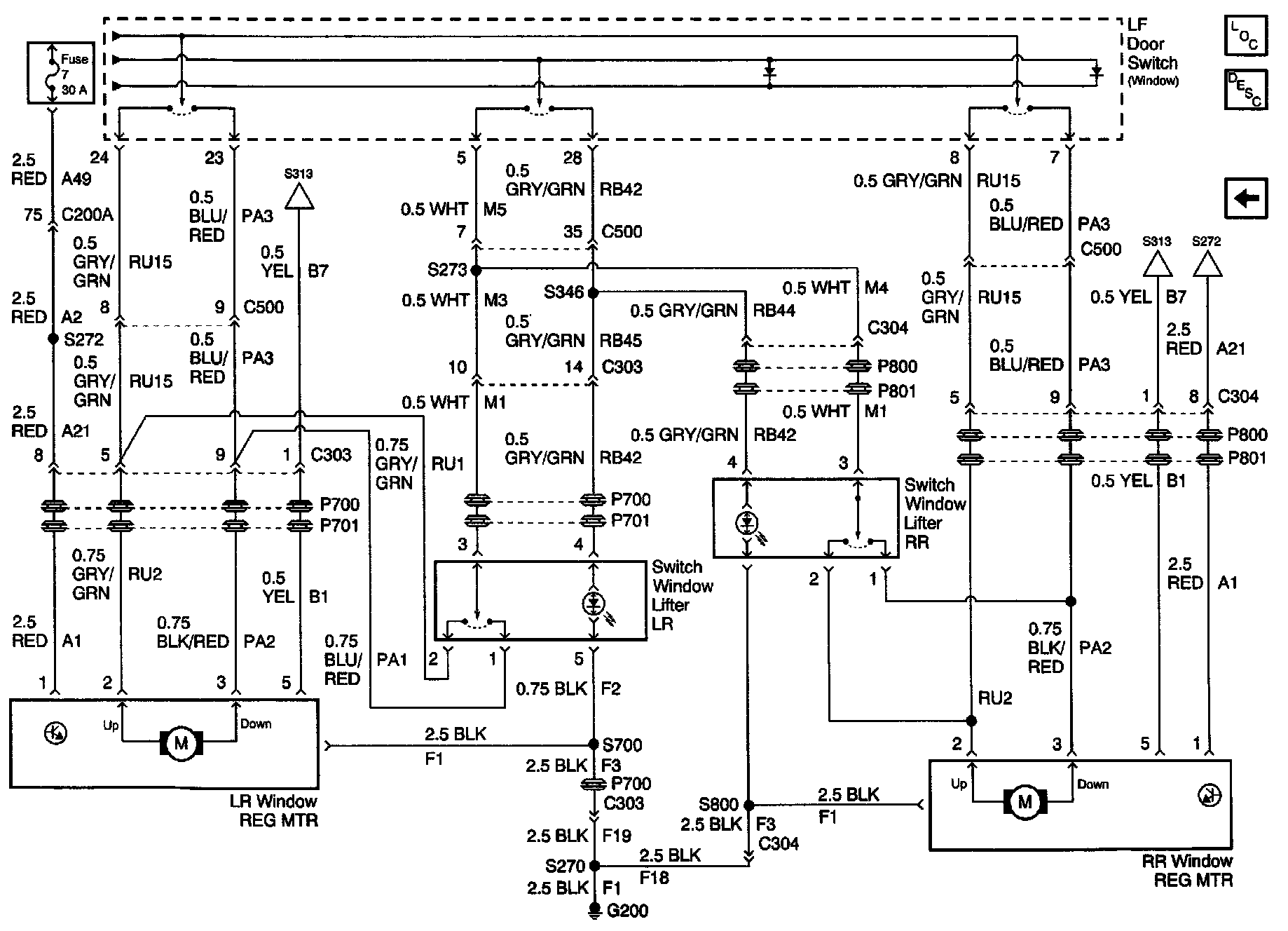

Power Window Schematics: Front And Rear Door Switches And Motors:
