Leveling Warning Indicator, DLC and VSS Input

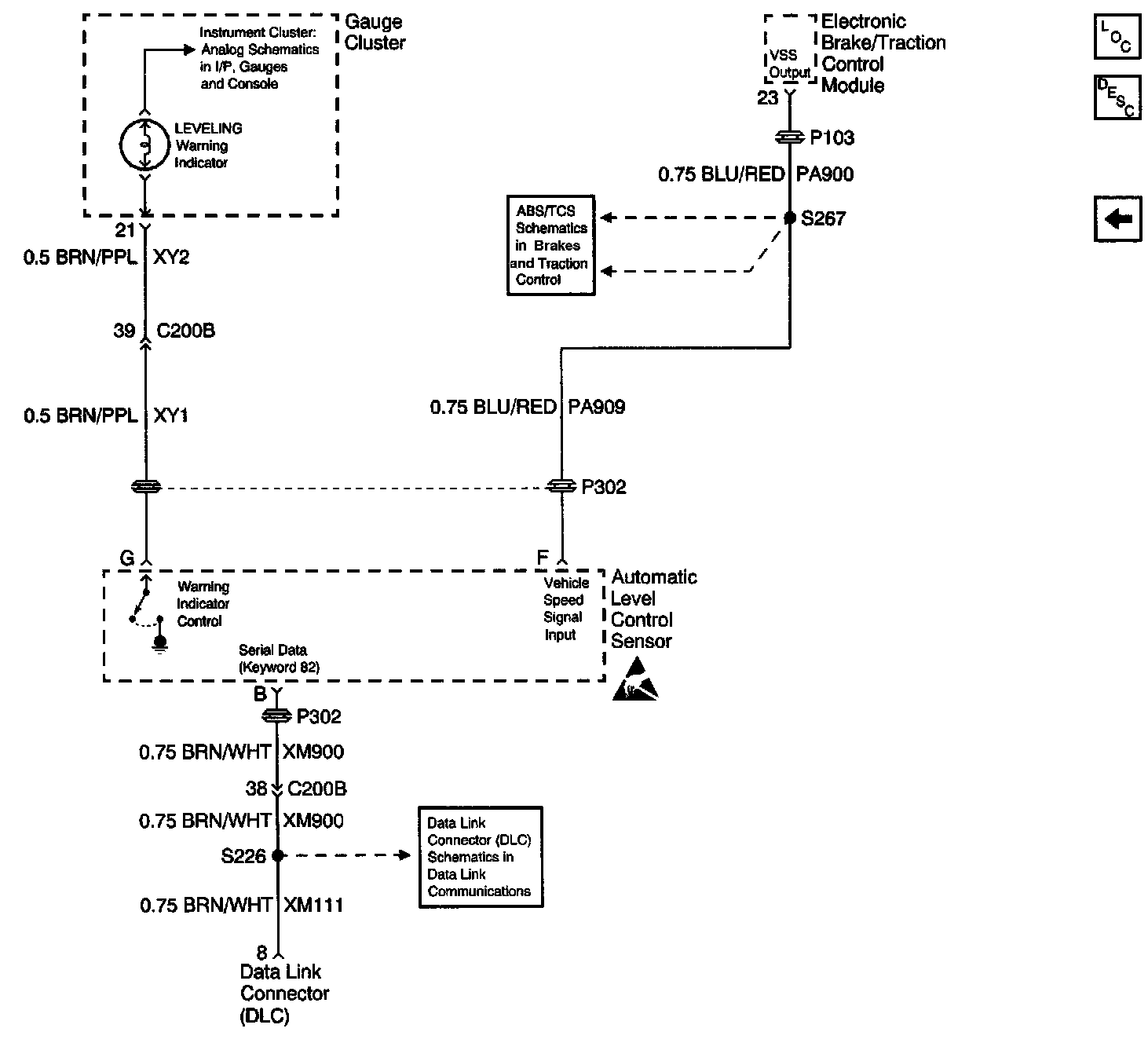

Automatic Level Control Suspension Schematics: Leveling Warning Indicator, DLC And VSS Input:
