Fan Control

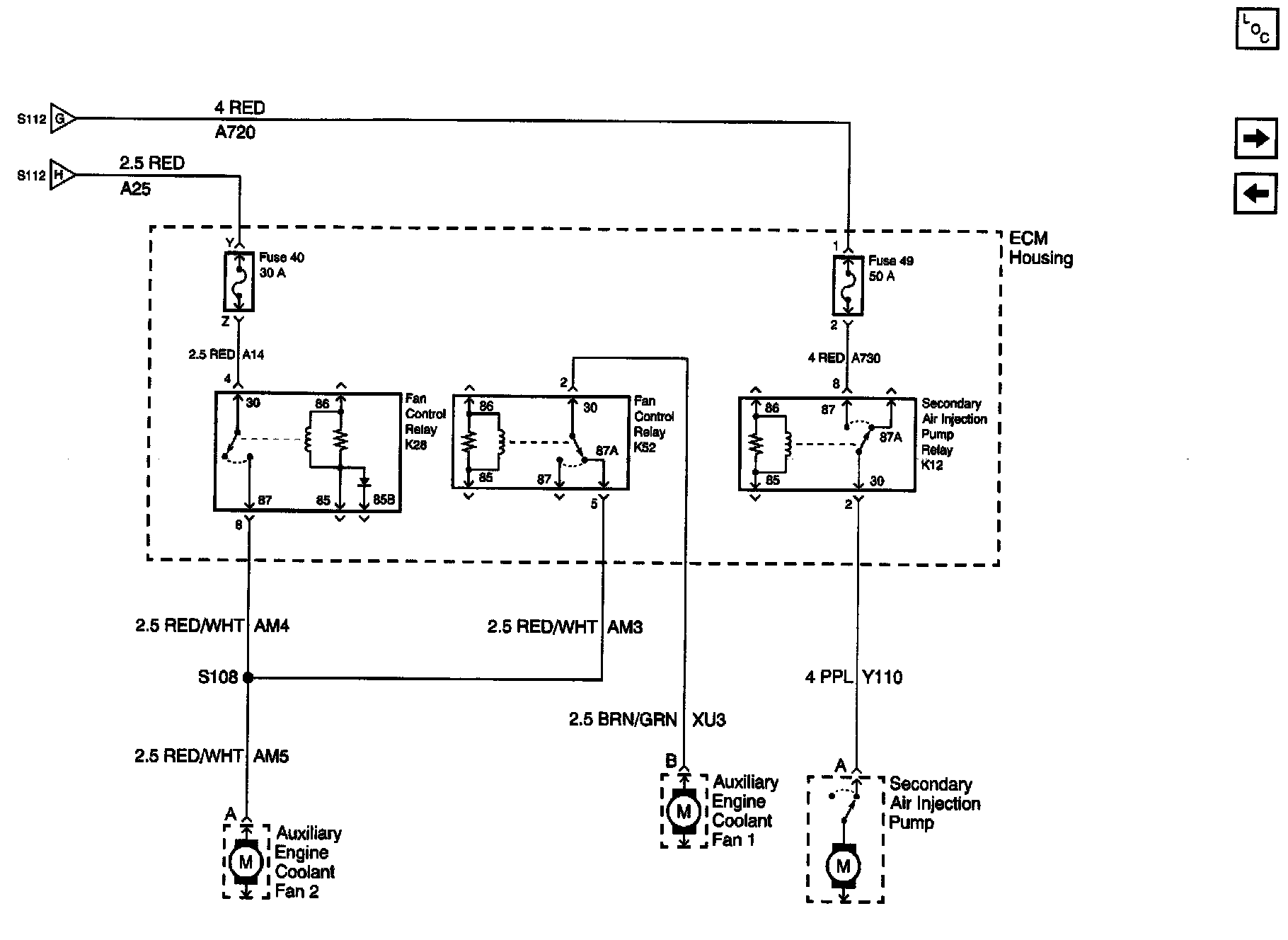

Power Distribution Schematics: ECM Housing, Secondary Air Injection Pump, Auxiliary Engine Cooling Fan 2:



Power Distribution Schematics: ECM Housing, ECM, Engine Controls Power Relay And Fuel Pump Relay:
