Fuse Block, WSWA System and Multifunction Relay

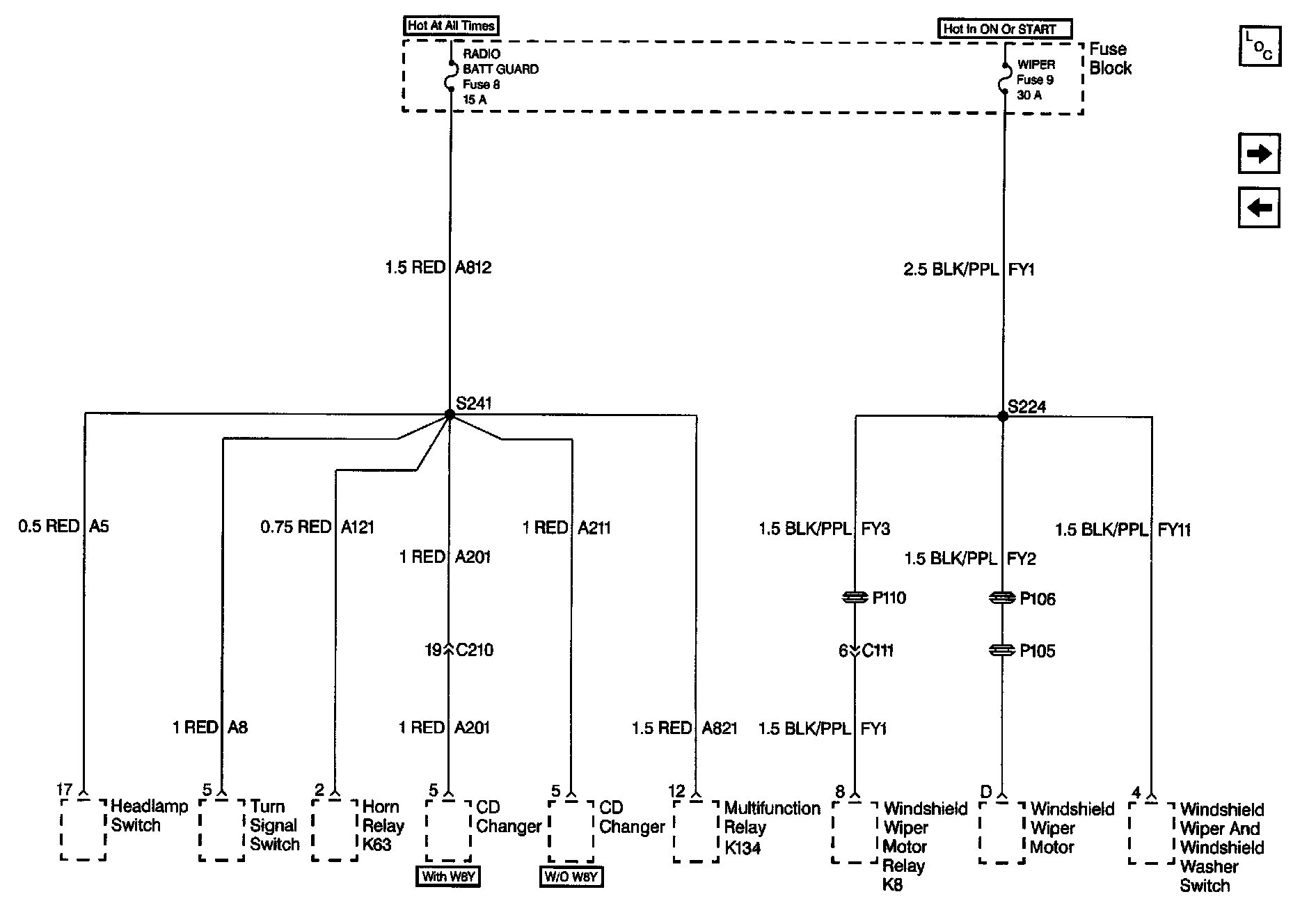

Power Distribution Schematics: Fuse Block, WSWA System And Multifunction Relay:
