Fuse Block, Low Beam Relay and Park Lamp Relay
Fuse Block, Low Beam Relay and Park Lamp Relay

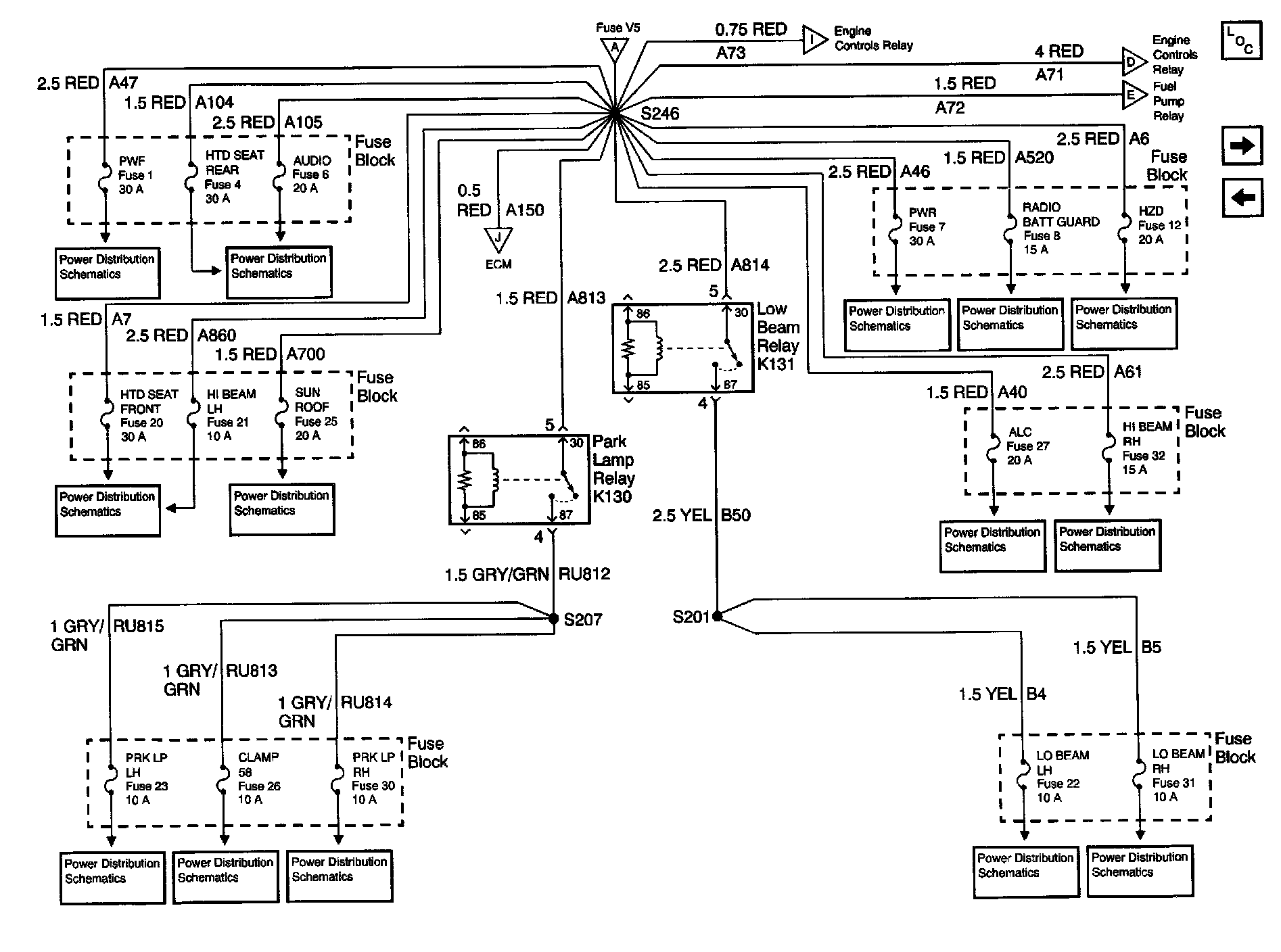

Power Distribution Schematics: Fuse Block, Low Beam Relay And Park Lamp Relay:
