Relays, Electric Cooling Fan and AC, Cooling Switches

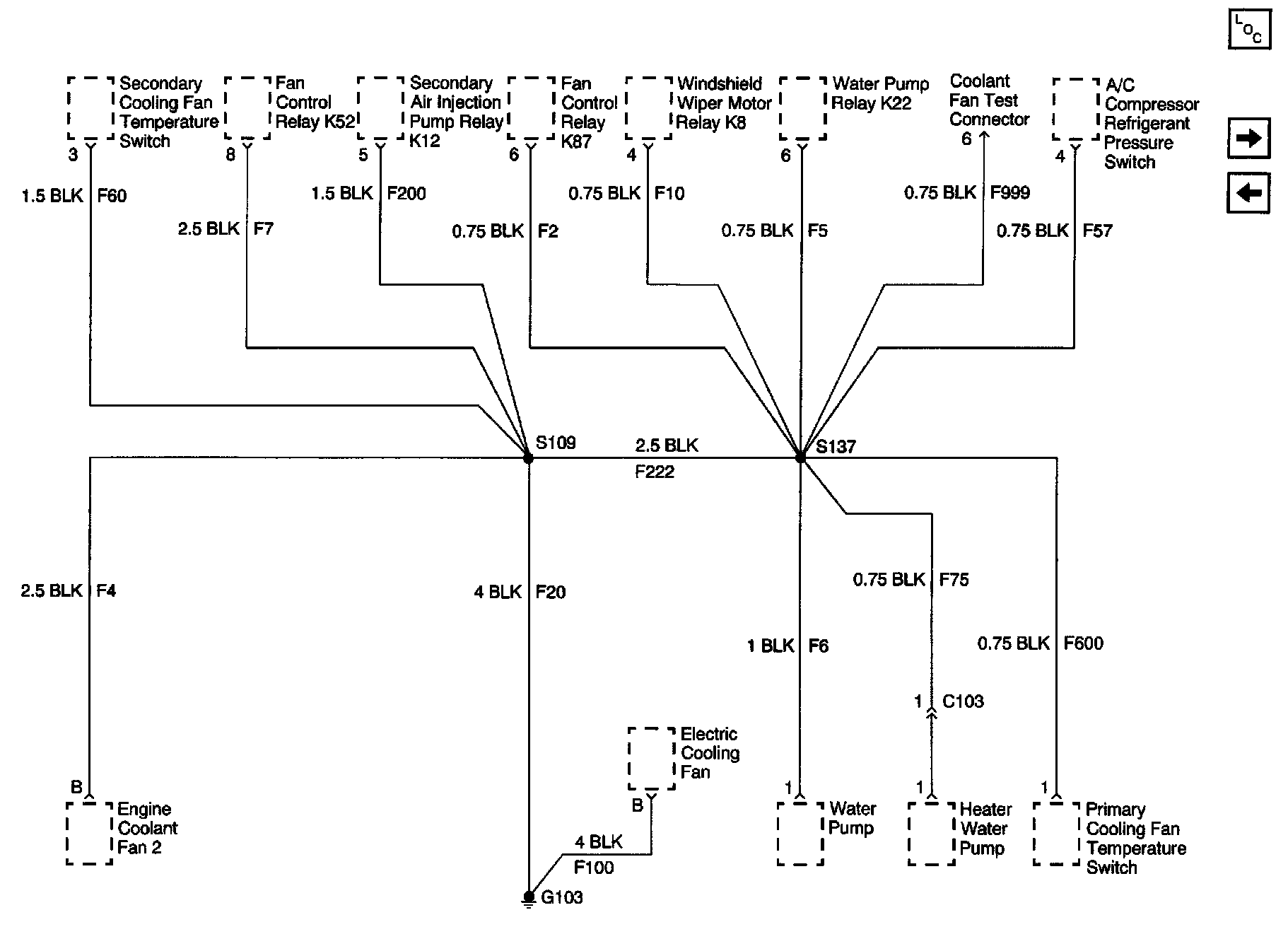

Ground Distribution Schematics: Relays, Electric Cooling Fan And AC, Cooling Switches:
