BATT, ECM, IGN Coils & Inflatable Restraint & Diagnostic Module

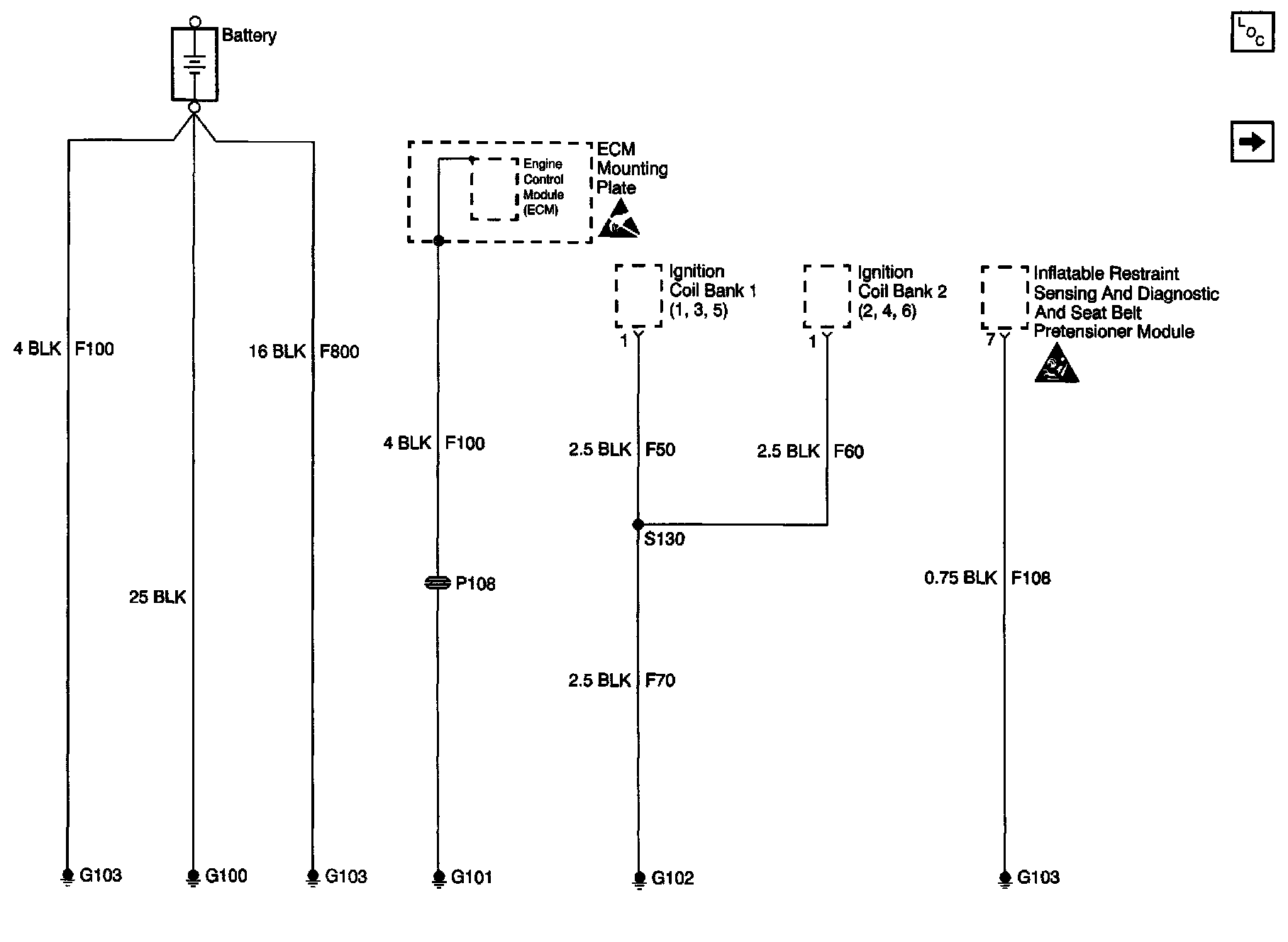

Ground Distribution Schematics: Battery, ECM, Ignition Coils And Inflatable Restraint Sensing And Diagnostic Module:
