AUTO Transmission CNTRL, Theft Deterrent Module and Heater SW
AUTO Transmission CNTRL, Theft Deterrent Module and Heater SW

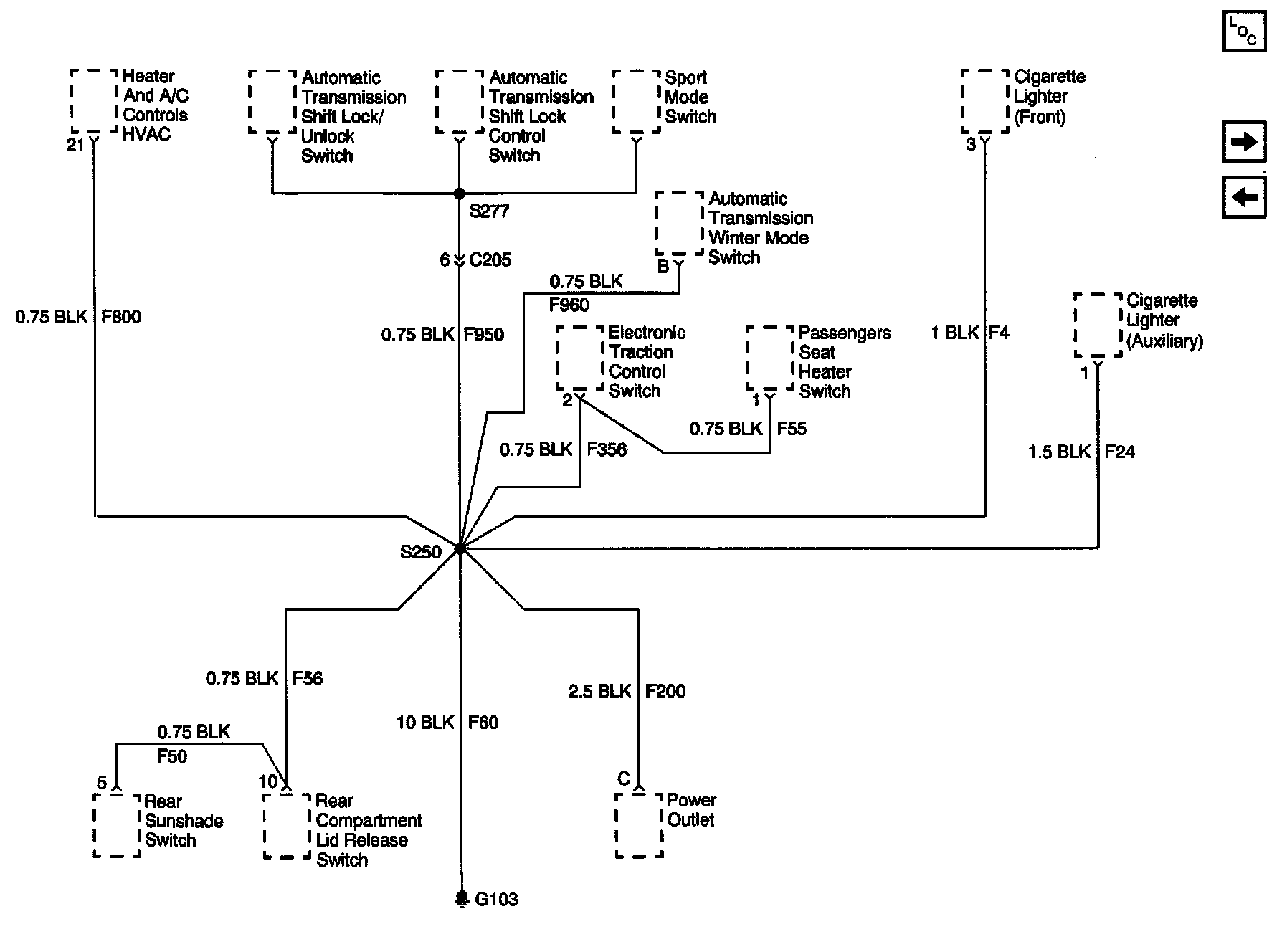

Ground Distribution Schematics: Automatic Transmission Controls, Theft Deterrent Module And Heater Switches:
