Steering Wheel Control Schematics

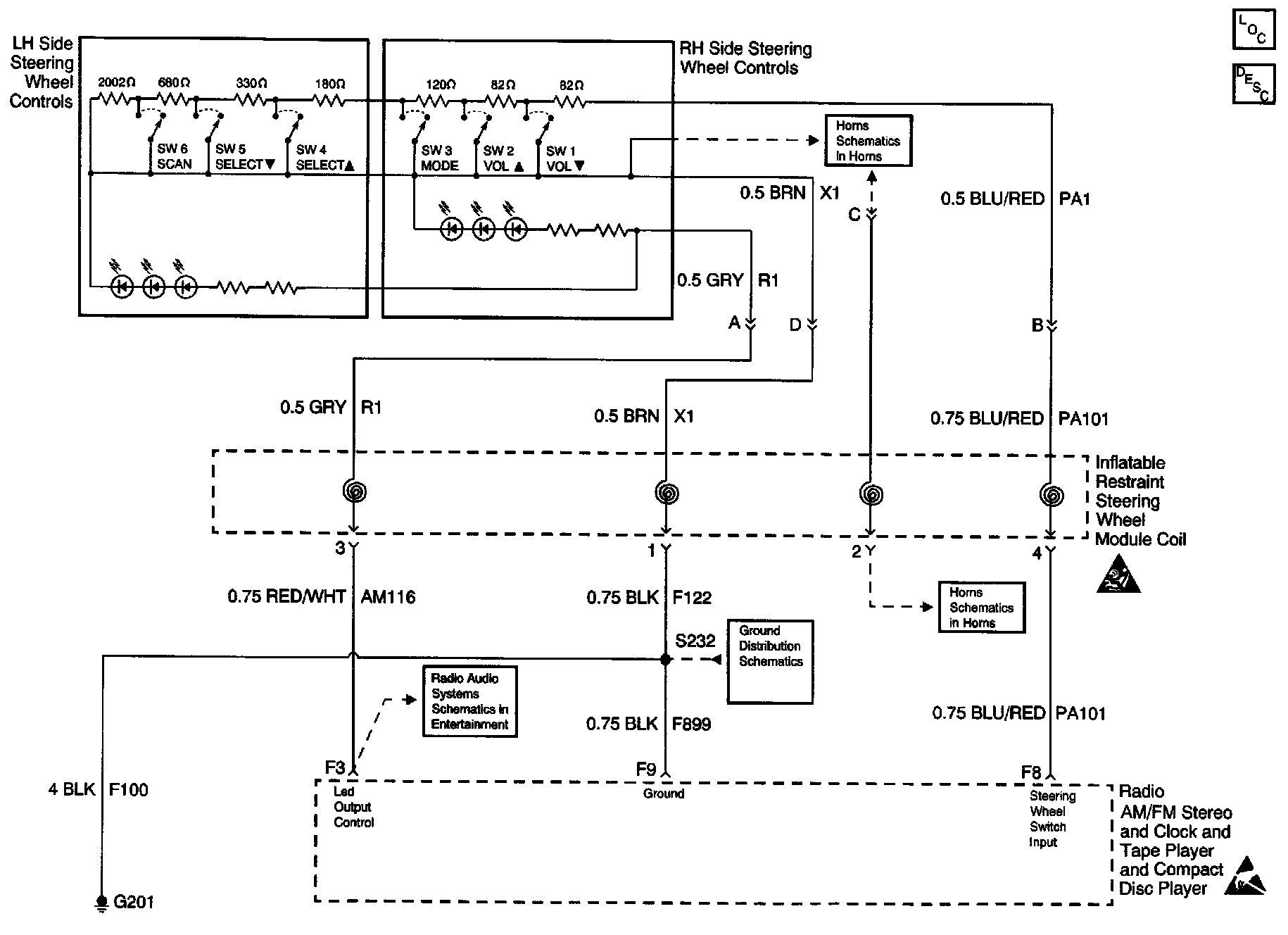

Steering Wheel Controls Schematics: LH And RH Side Steering Wheel Radio Controls:
