Power, Ground, DLC For Base and Bose (R) Systems
Power, Ground, DLC For Base and Bose (R) Systems

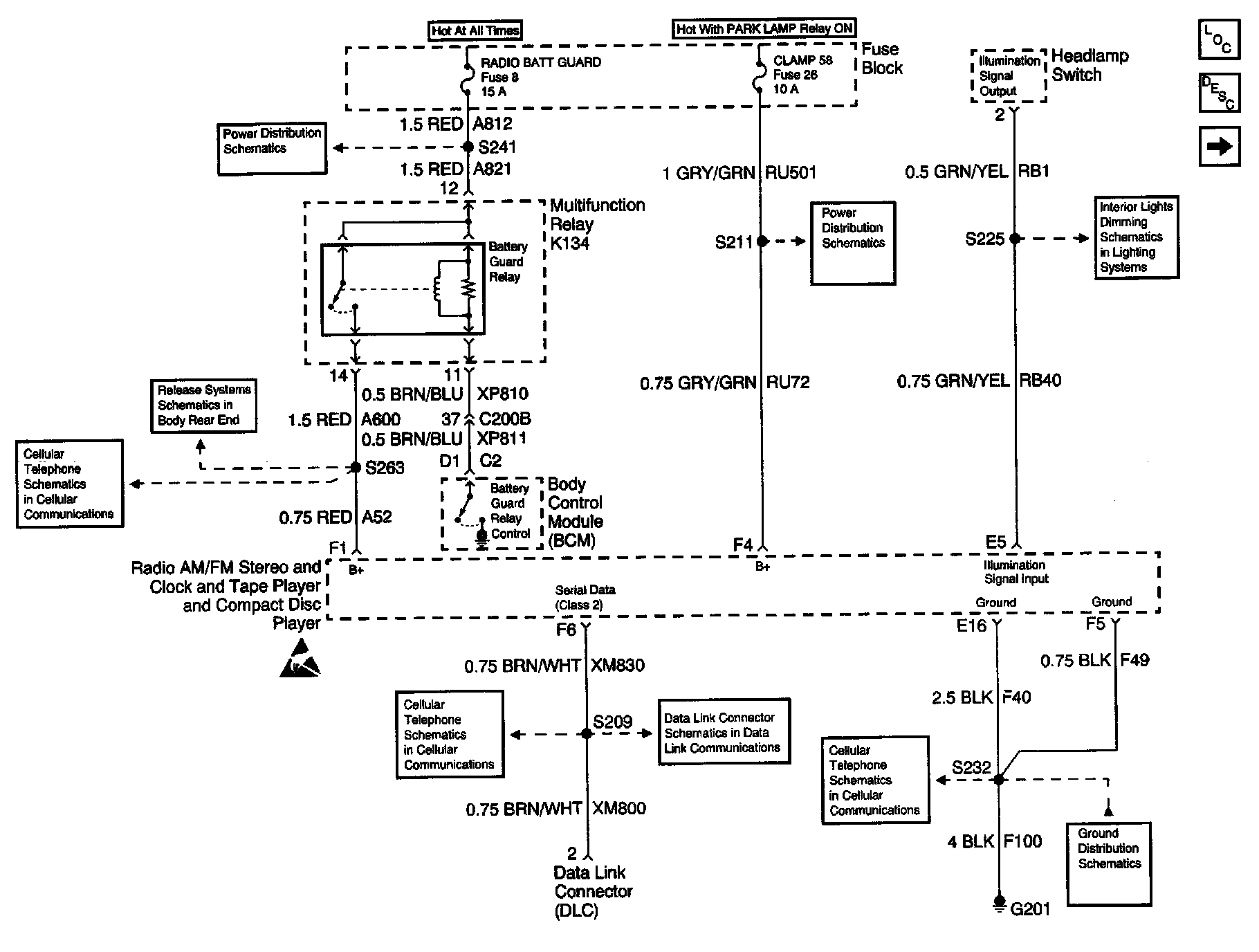

Radio/Audio System Schematics: Power, Ground, DLC For Base And Bose (R) Systems:
