Base and Bose (R) System Rear Antenna Amplifier
Base and Bose (R) System Rear Antenna Amplifier

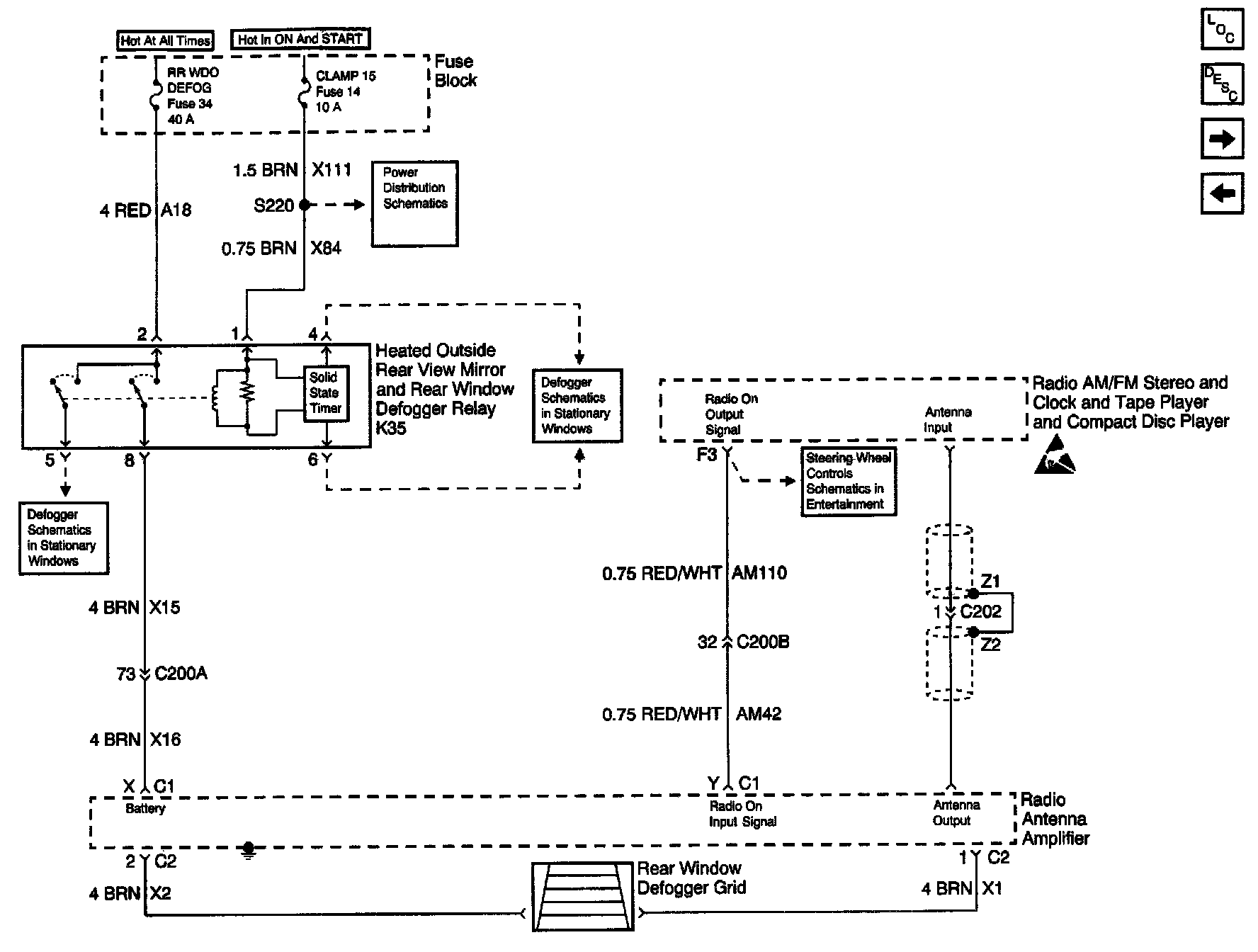

Radio/Audio System Schematics: Base And Bose (R) System Rear Antenna Amplifier:
