Throttle Position (TP) Sensor

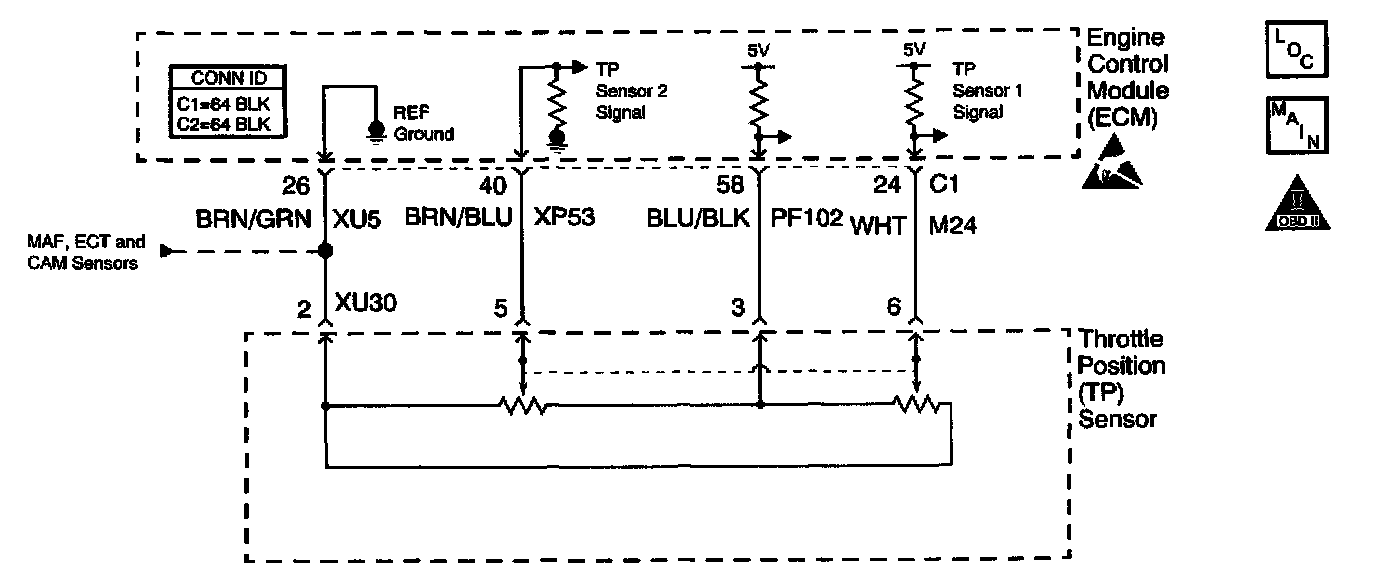

Engine Controls Schematics: Engine Controls (Throttle Position (TP) Sensor):

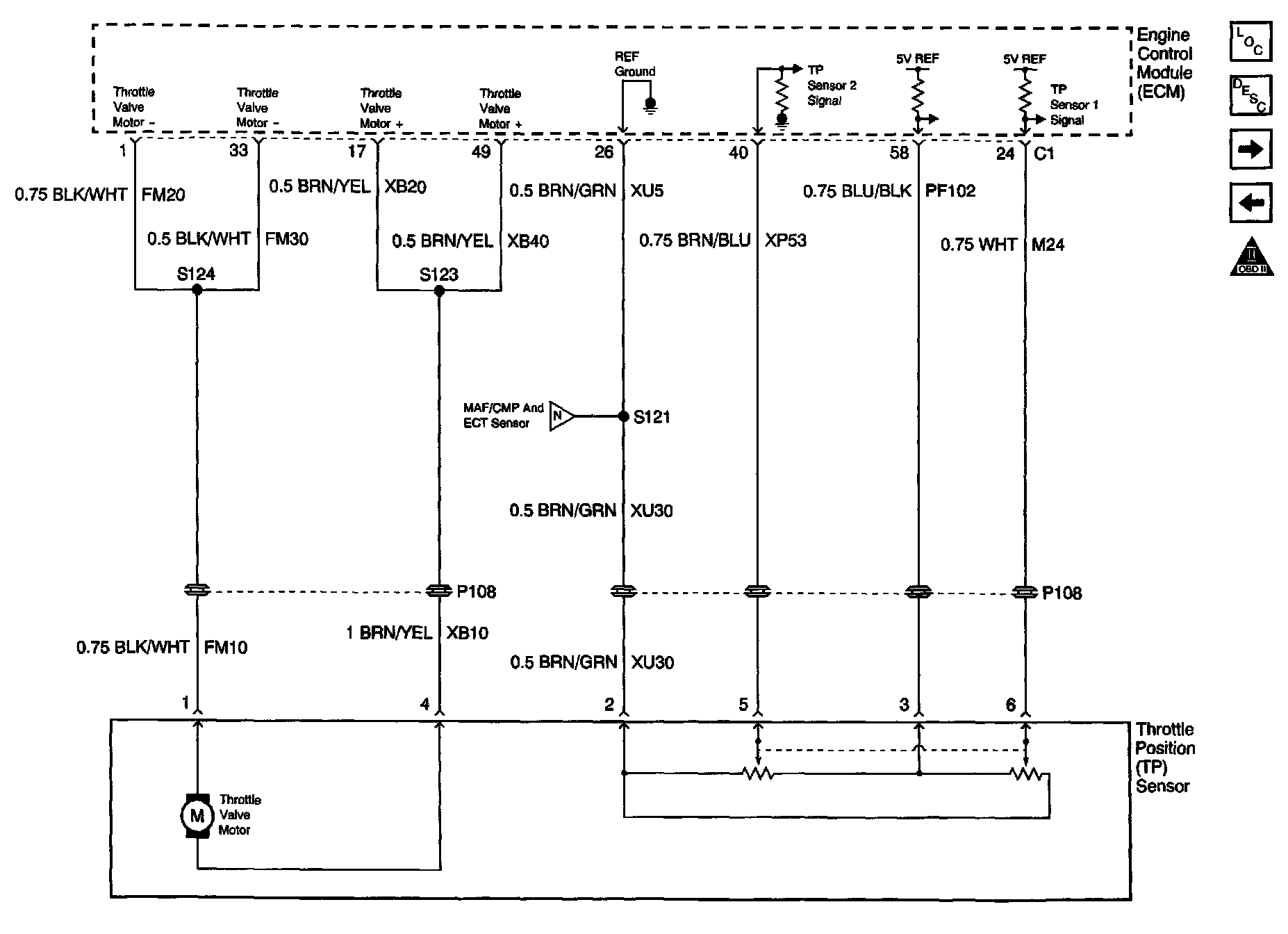

Schematic:

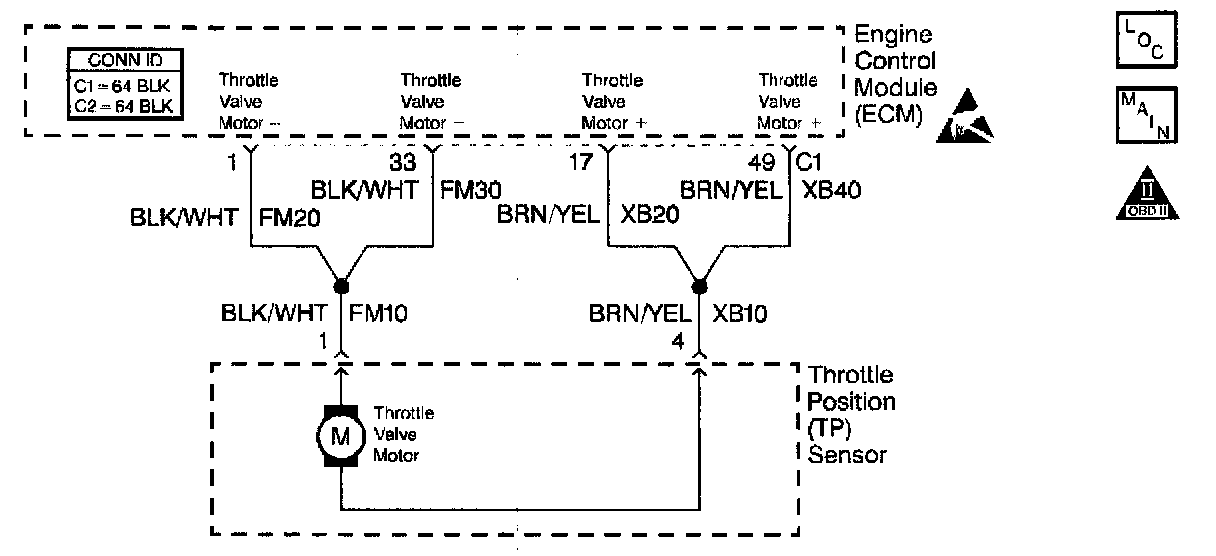

Schematic:
