Accelerator Pedal Position Sensor (APP)

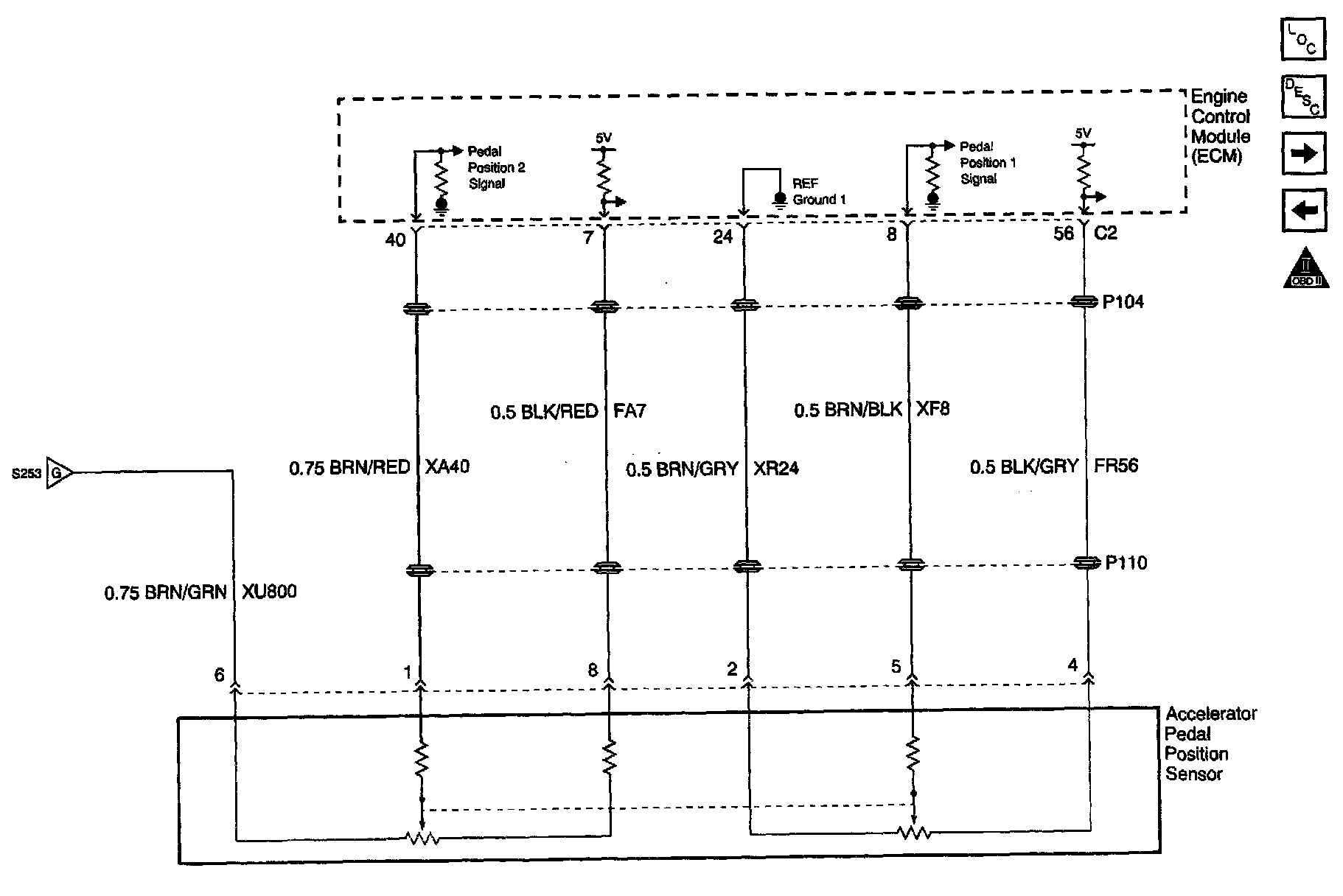

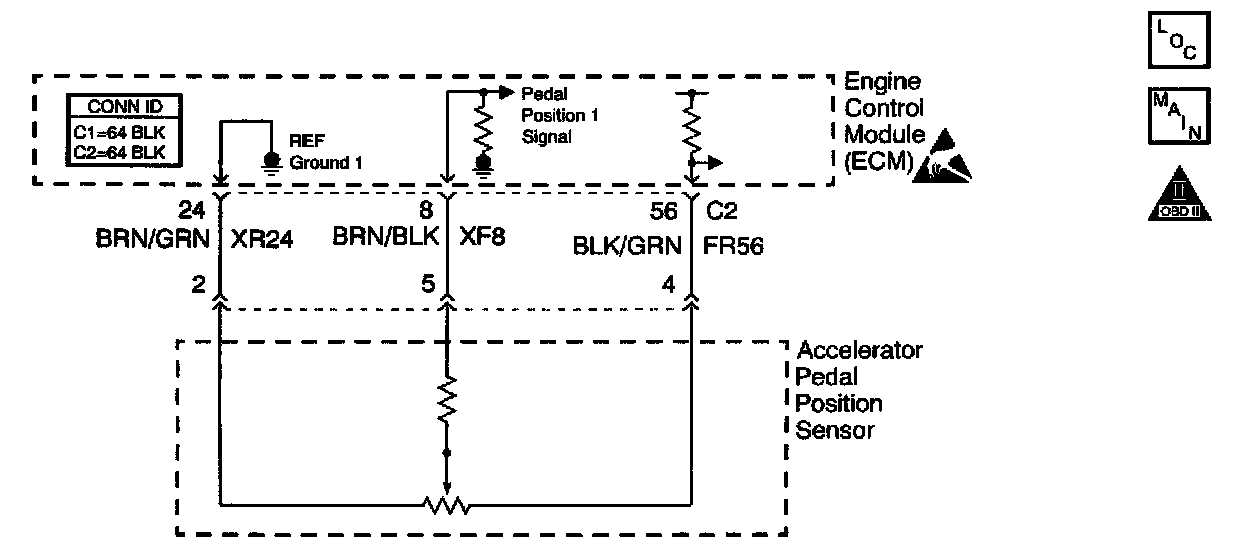

Engine Controls Schematics: Accelerator Pedal Position (APP) Sensor:



Schematic:
