EVAP Sensors and Controls

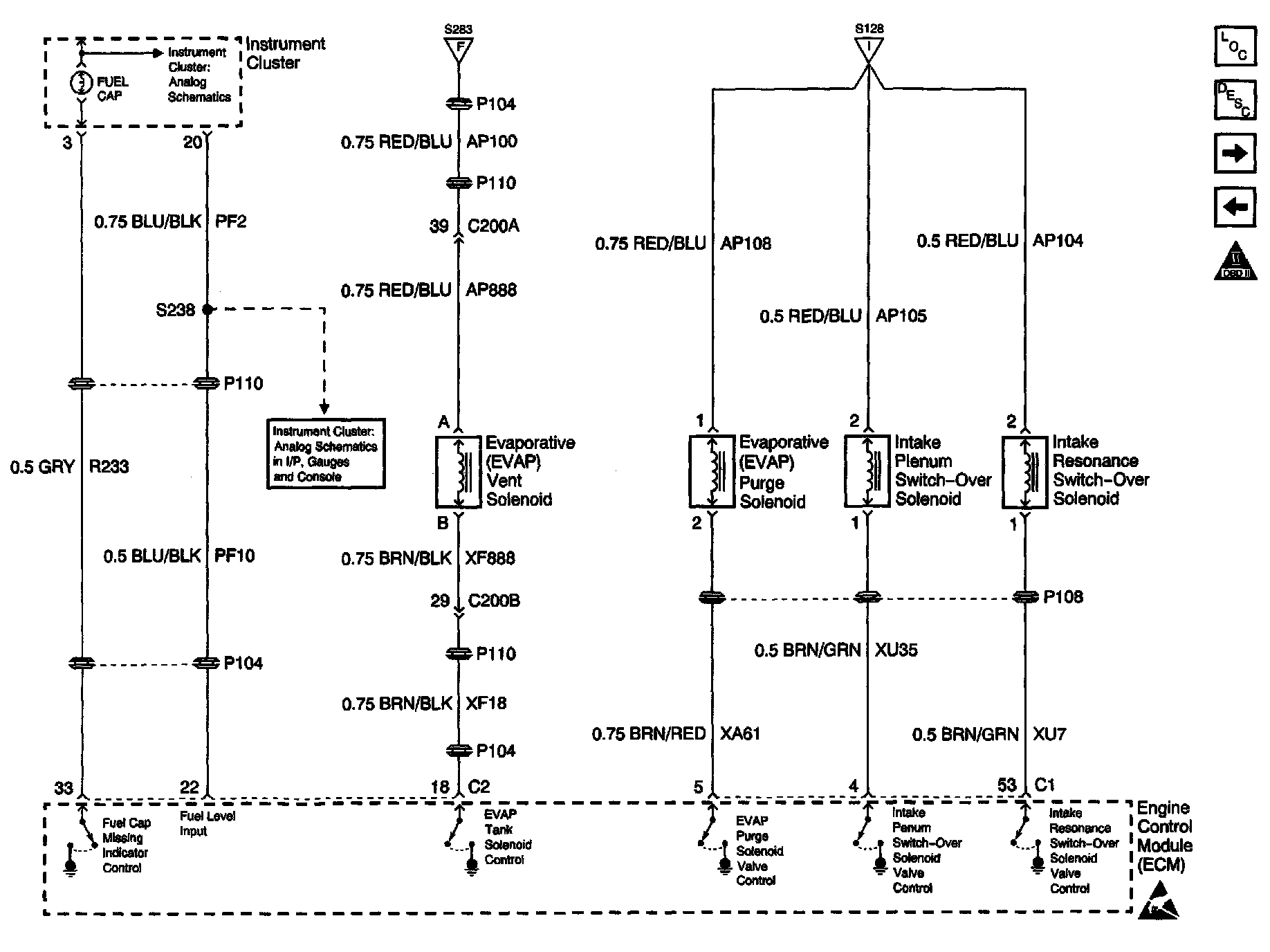

Engine Controls Schematics: EVAP Tank, Purge And Intake Plenum, Resonance Solenoid Valves:
