Horn Relay K63 and Door Jamb Switch Inputs

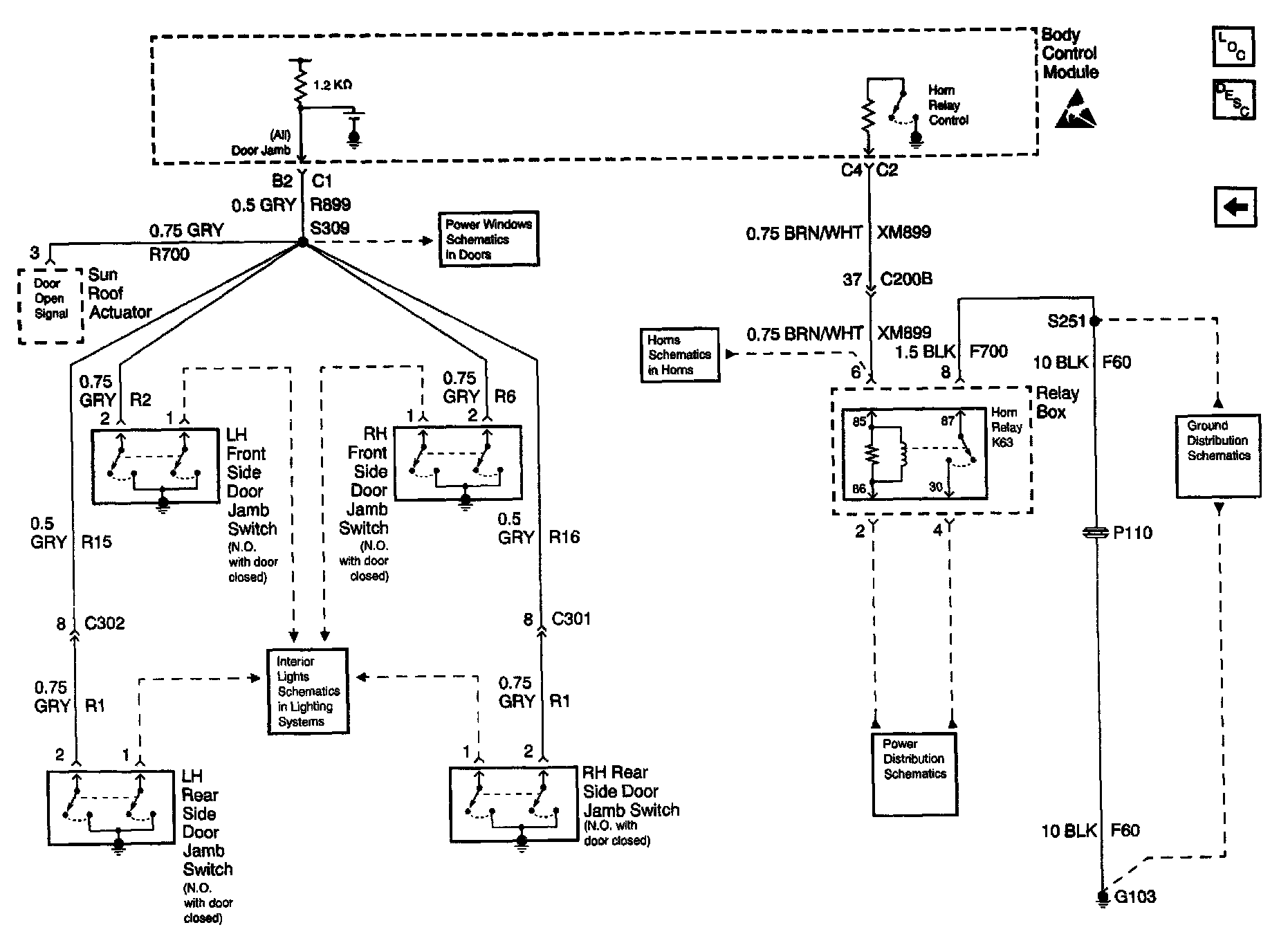

Body Control Module Schematics: Horn Relay K63 And Door Jamb Switch Inputs:
