Headlamp, Wiper, and Stoplamp Switch Inputs

Body Control Module Schematics: Headlamp, Wiper, And Stoplamp Switch Inputs:

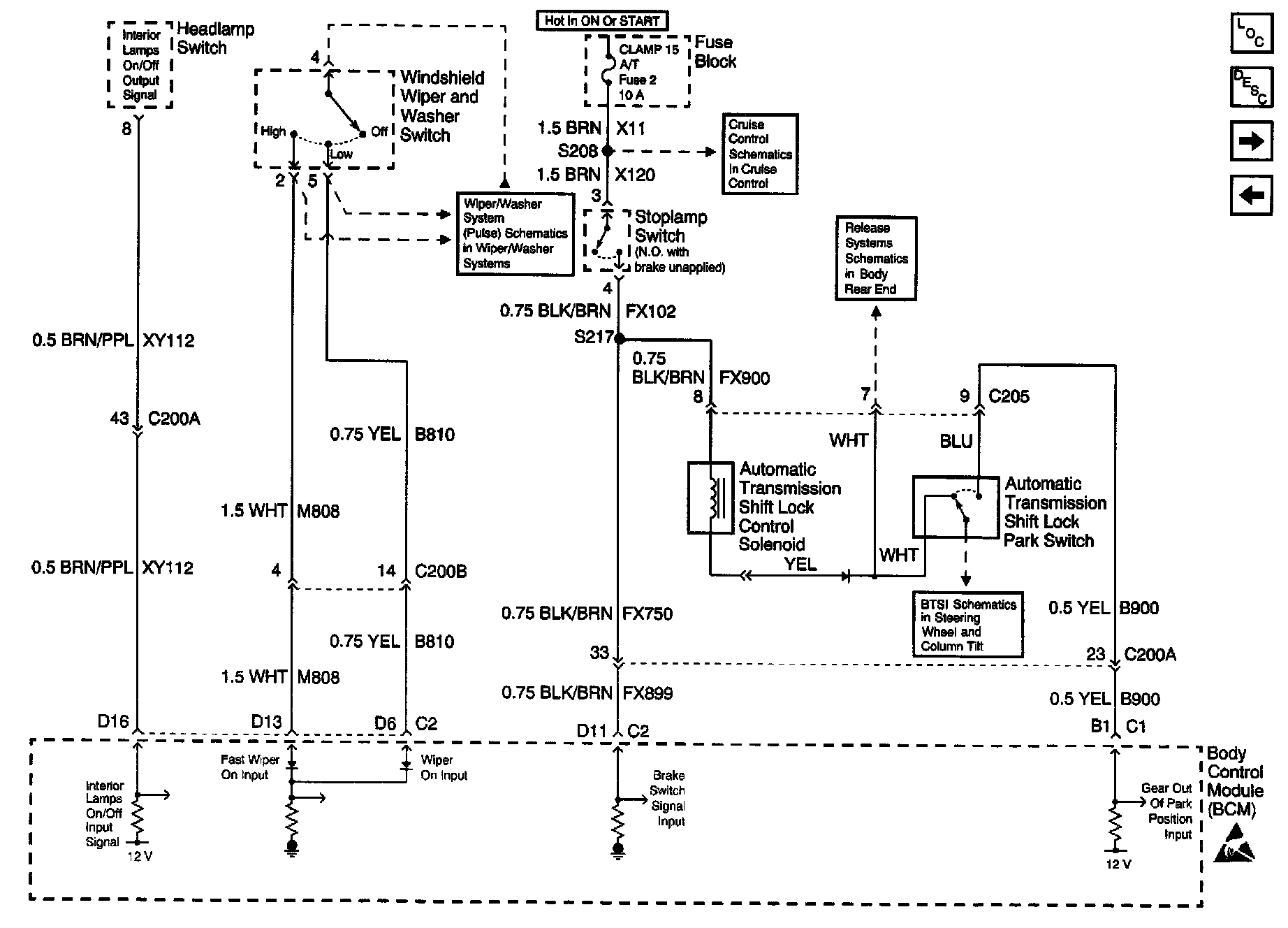

Body Control Module Schematics: Headlamp, Wiper, And Stoplamp Switch Inputs:
