Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Door Lock Relay K135

Door Lock Relay K135

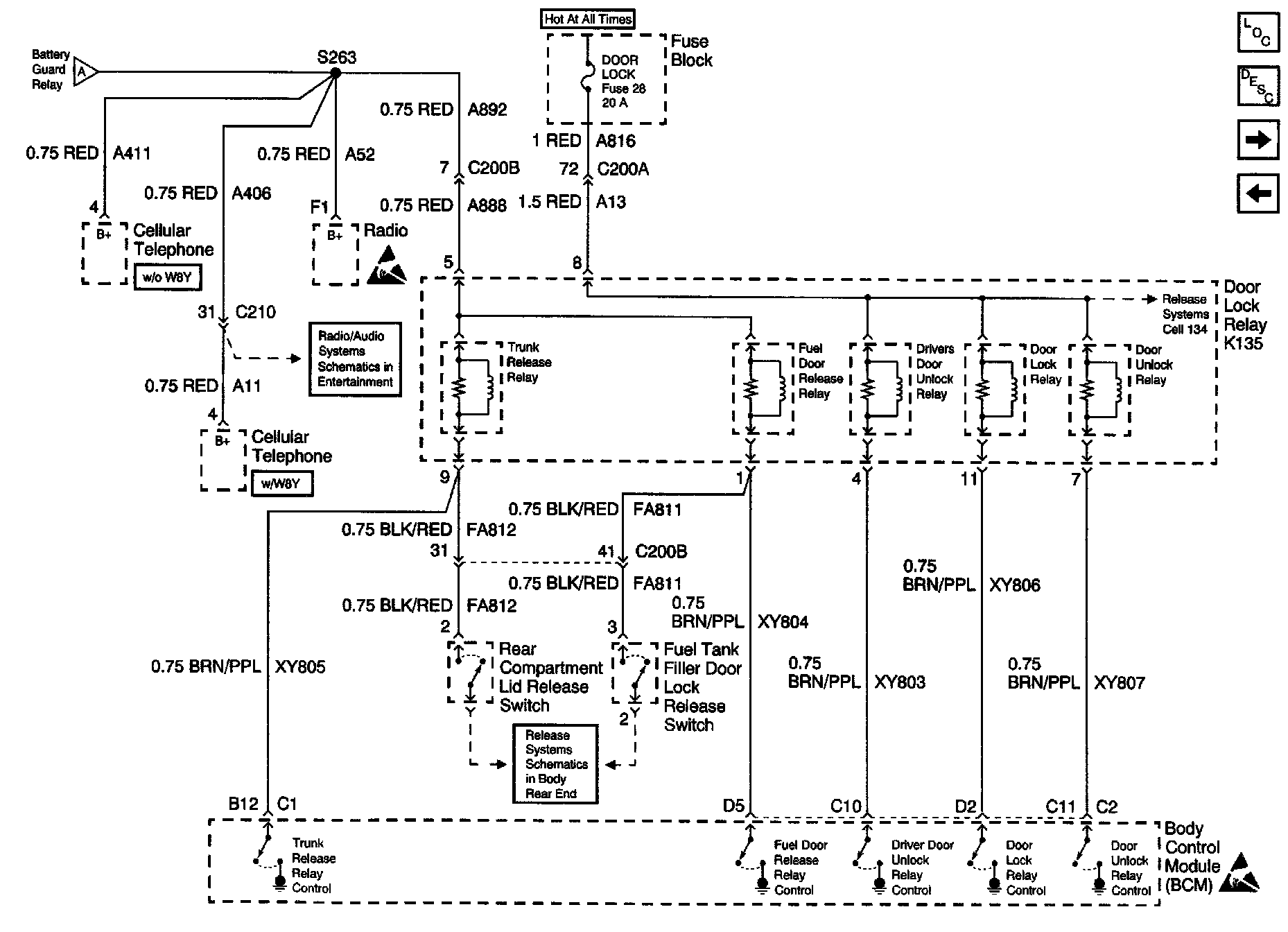

Body Control Module Schematics: Door Lock Relay K135:
