Instrument Cluster, Heater and AC Control and Cigarette Lighter

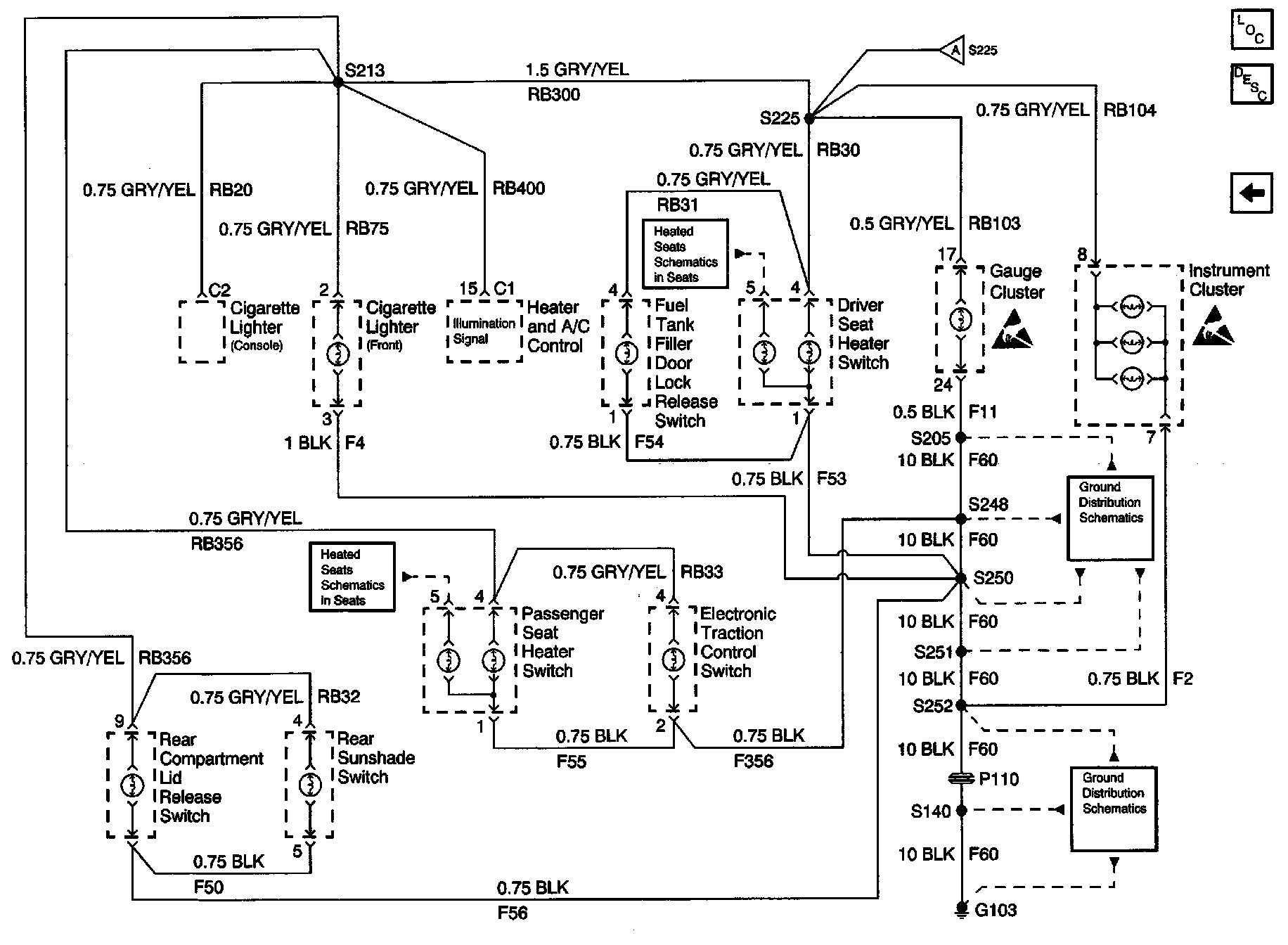

Interior Lights Dimming Schematics: Instrument Cluster, Heater And AC Control And Cigarette Lighter:
