Turn Signal Switch, BCM and Instrument Cluster
Turn Signal Switch, BCM and Instrument Cluster

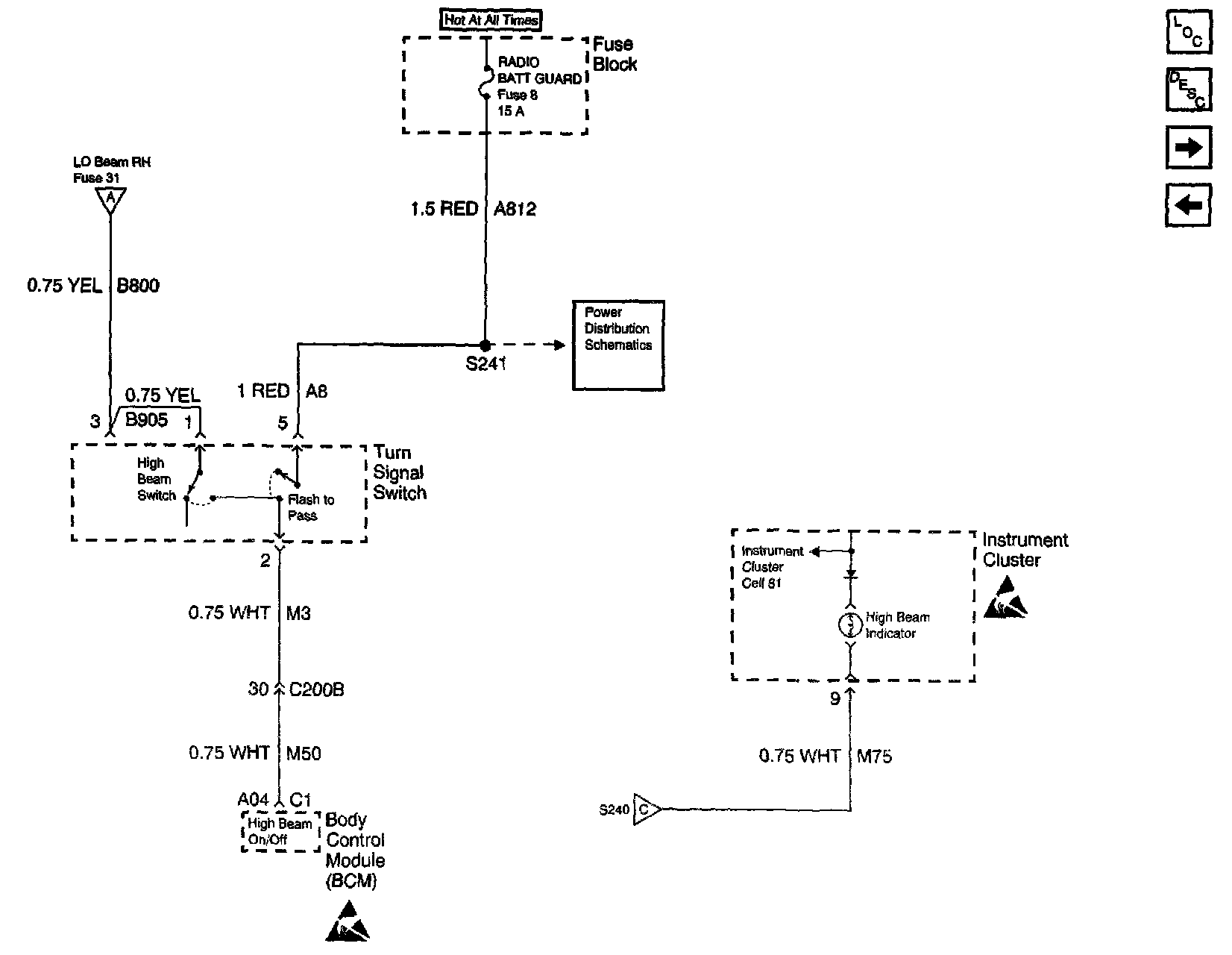

Headlights/Daytime Running Lights (DRL) Schematics: Turn Signal Switch, BCM And Instrument Cluster:
