Headlights
>>
Headlamp SW, BCM, Heater and AC Control and Instrument Cluster
Headlamp SW, BCM, Heater and AC Control and Instrument Cluster

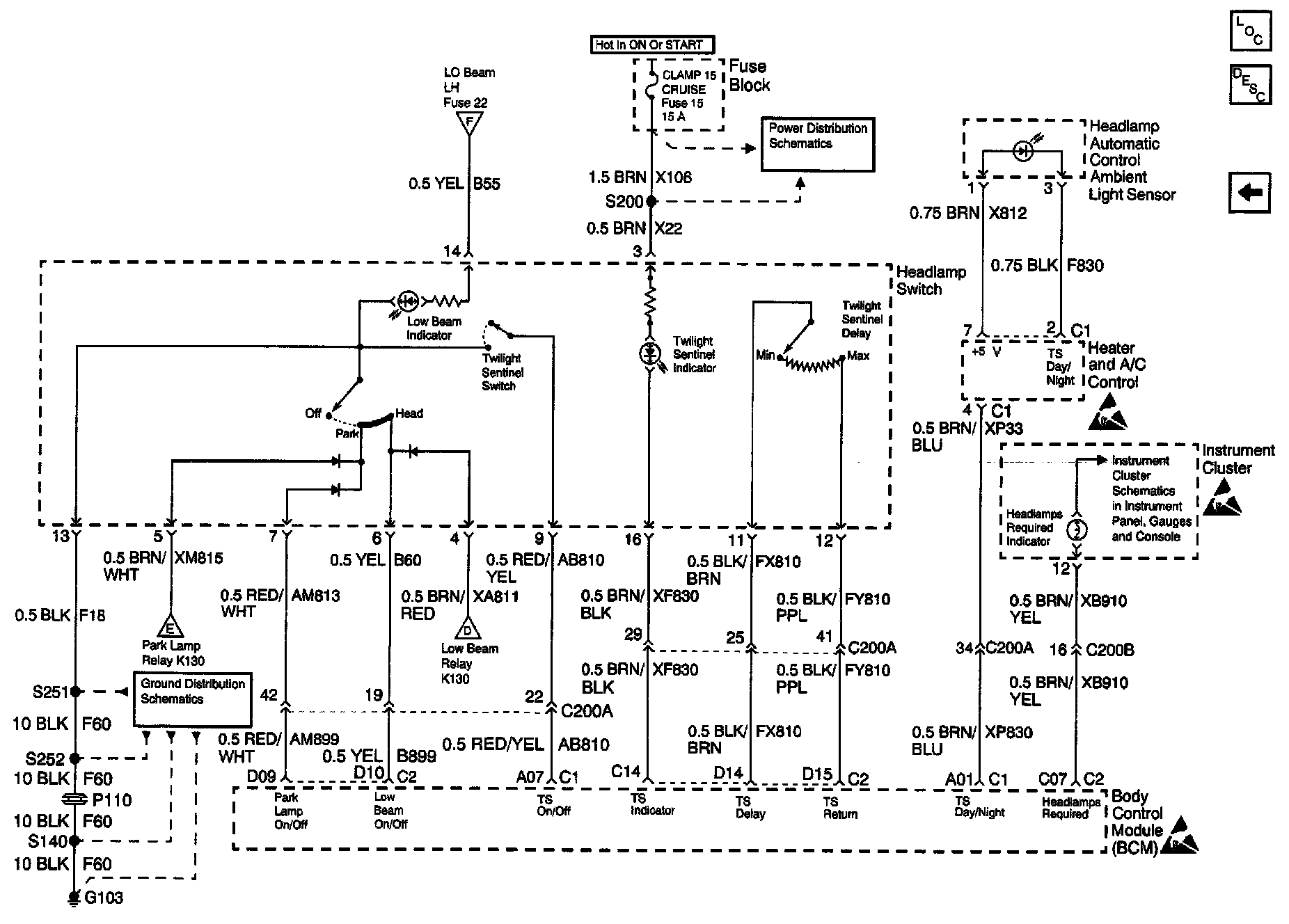

Headlights/Daytime Running Lights (DRL) Schematics: Headlamp Switch, BCM, Heater And AC Control And Instrument Cluster:
