HDLP SW/PK LP Relay/LO Beam Relay/HDLP HID Ballasts
HDLP SW/PK LP Relay/LO Beam Relay/HDLP HID Ballasts

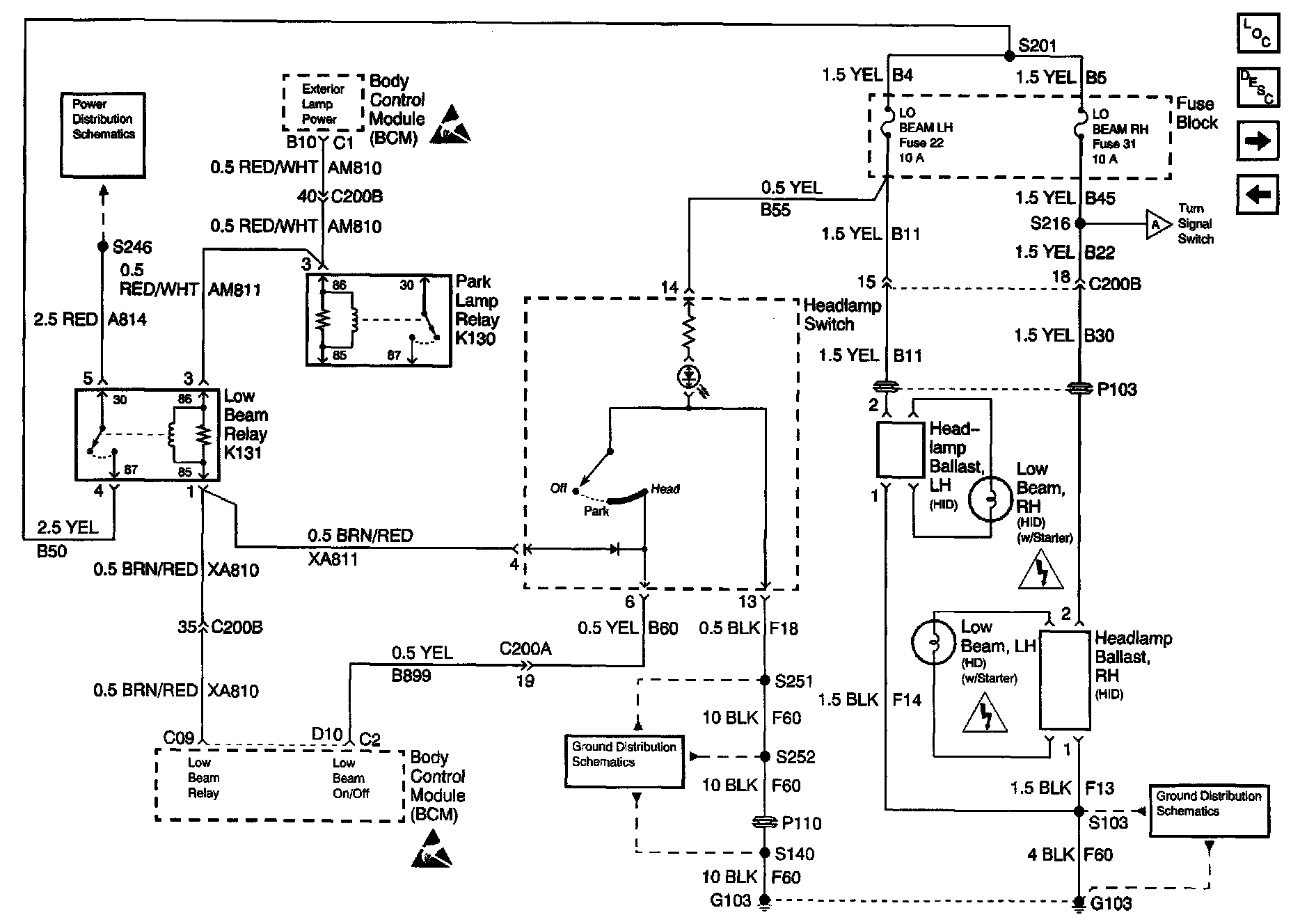

Headlights/Daytime Running Lights (DRL) Schematics: Headlamp Switch, Park Lamp Relay K130, Low Beam Relay K131 And Headlamp Haigh Intensity Discharge Ballasts:
