DLR Relay K133, LH and RH High Beam Headlamp Relays and BCM
DLR Relay K133, LH and RH High Beam Headlamp Relays and BCM

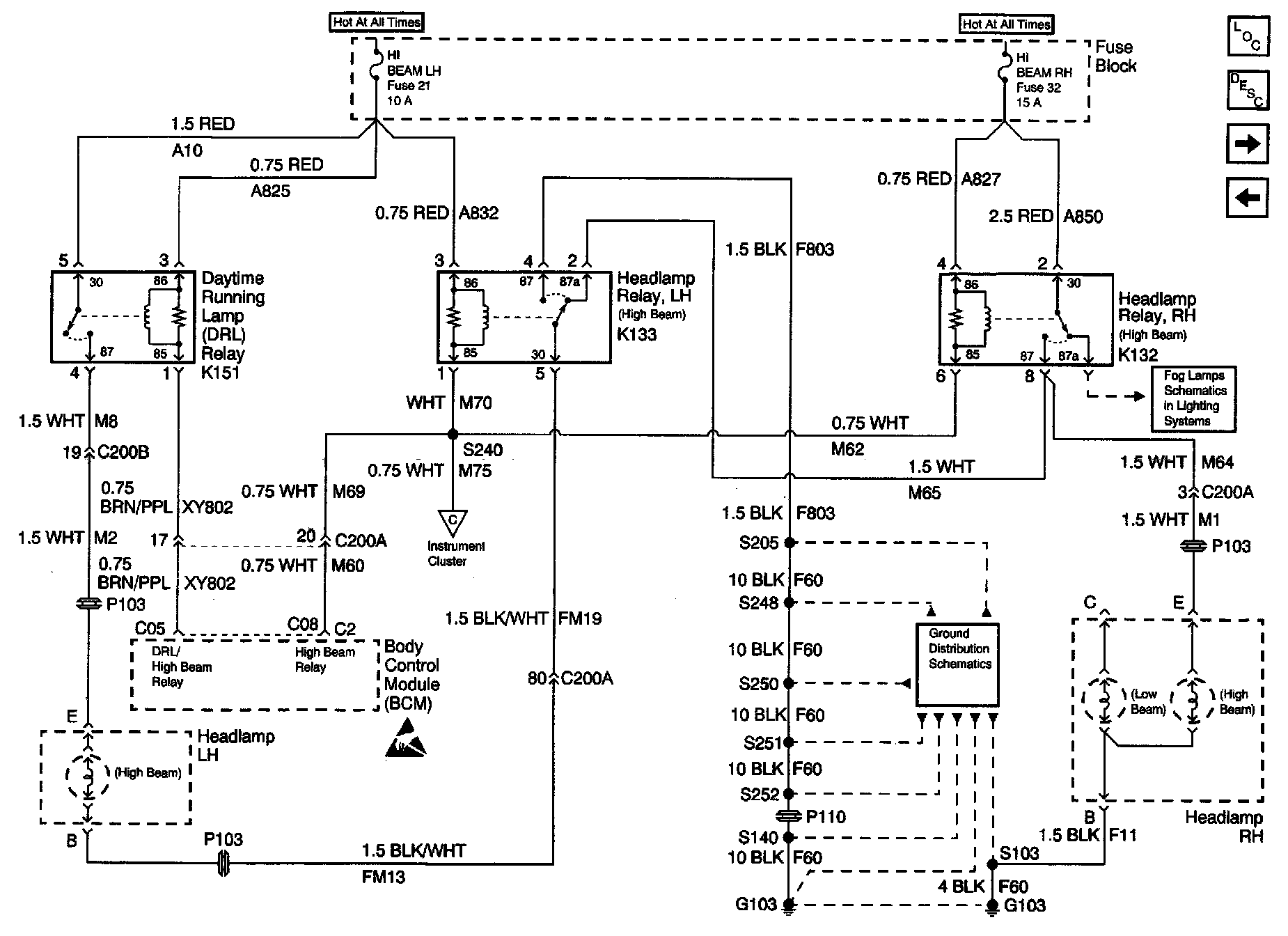

Headlights/Daytime Running Lights (DRL) Schematics: DLR Relay K133, LH And RH High Beam Headlamp Relays And BCM:
