Fog Lights

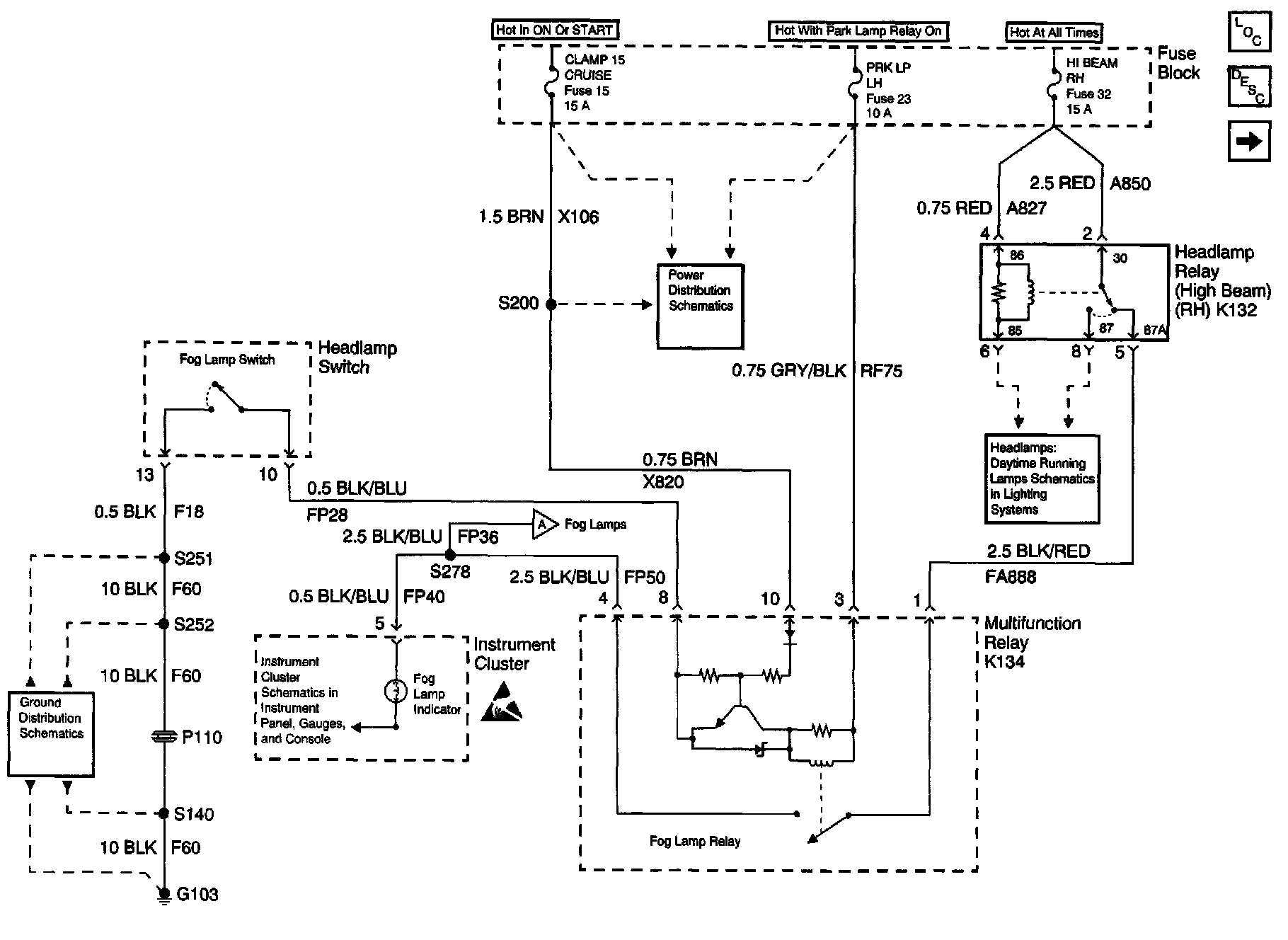

Fog Lights Schematics: Fog Lamp Switch And Multifunction Relay 134:

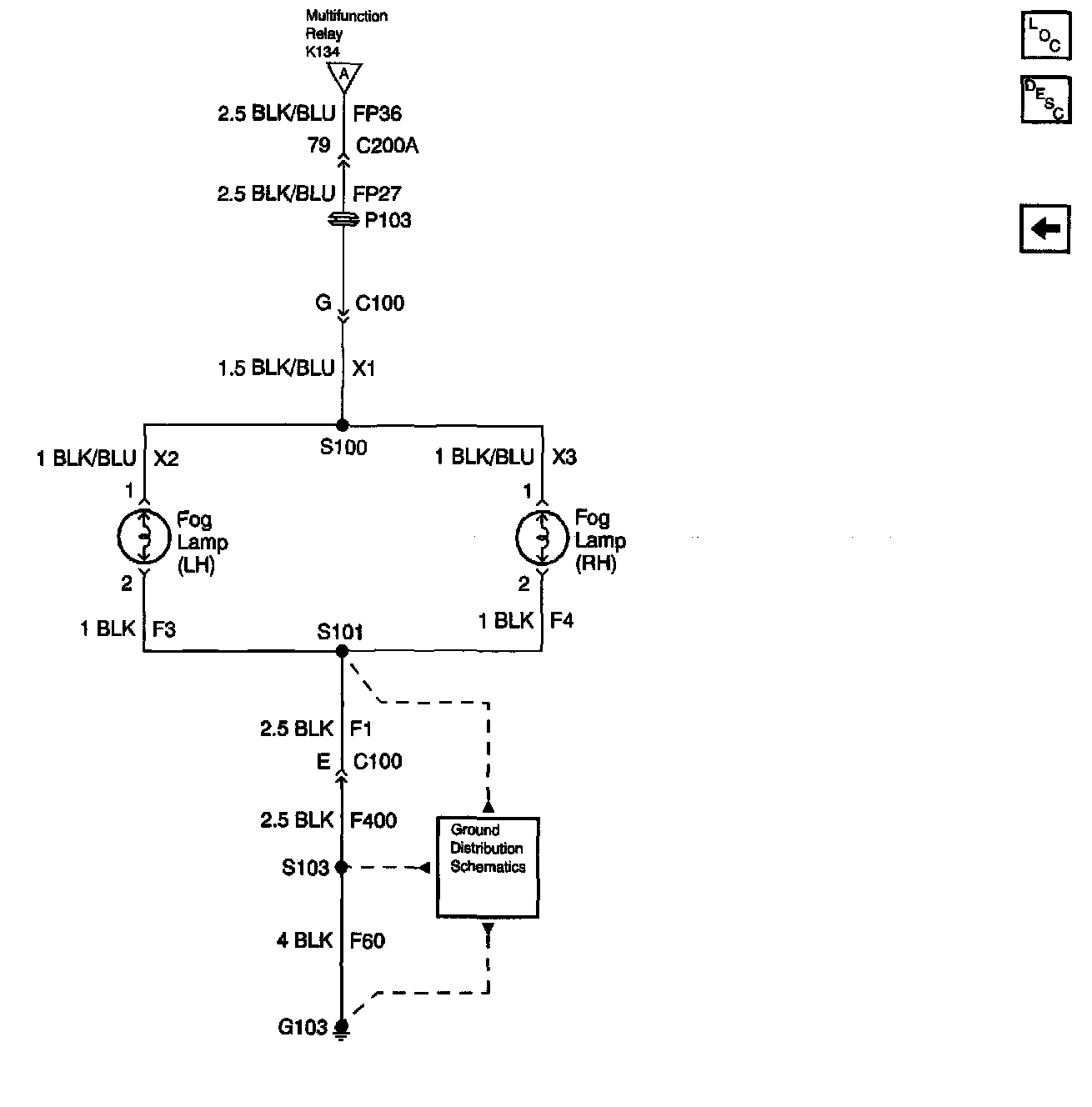

Fog Lights Schematics: LH And RH Fog Lamps:
