Park/Turn Signal Lamps and Stop/Taillamps

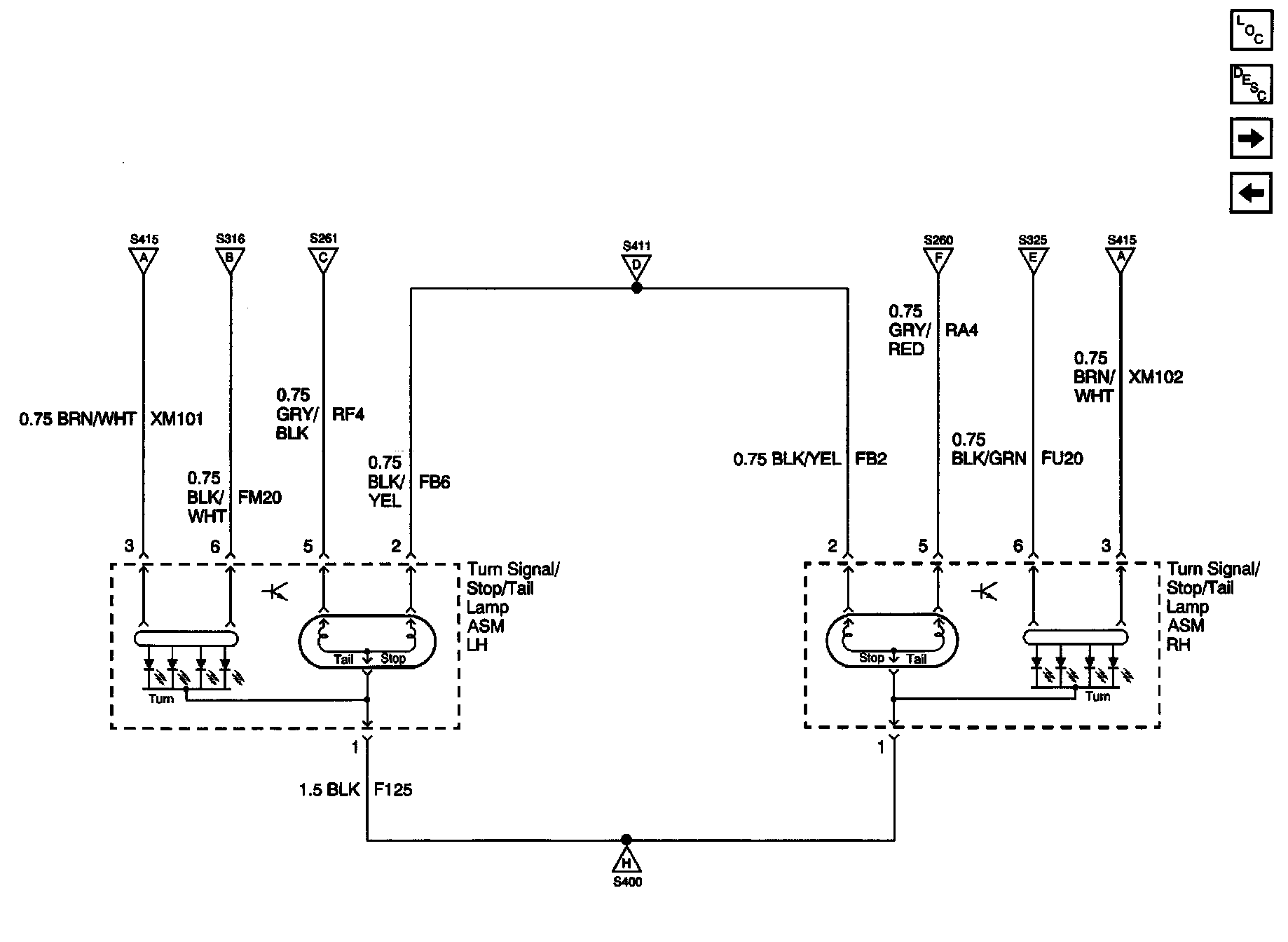

Exterior Lights Schematics: Park/Turn Signal Lamps And Stop/Taillamps:
