BCM Headlamp Switch Park Lamp Relay K130 and Fuse Block
BCM Headlamp Switch Park Lamp Relay K130 and Fuse Block

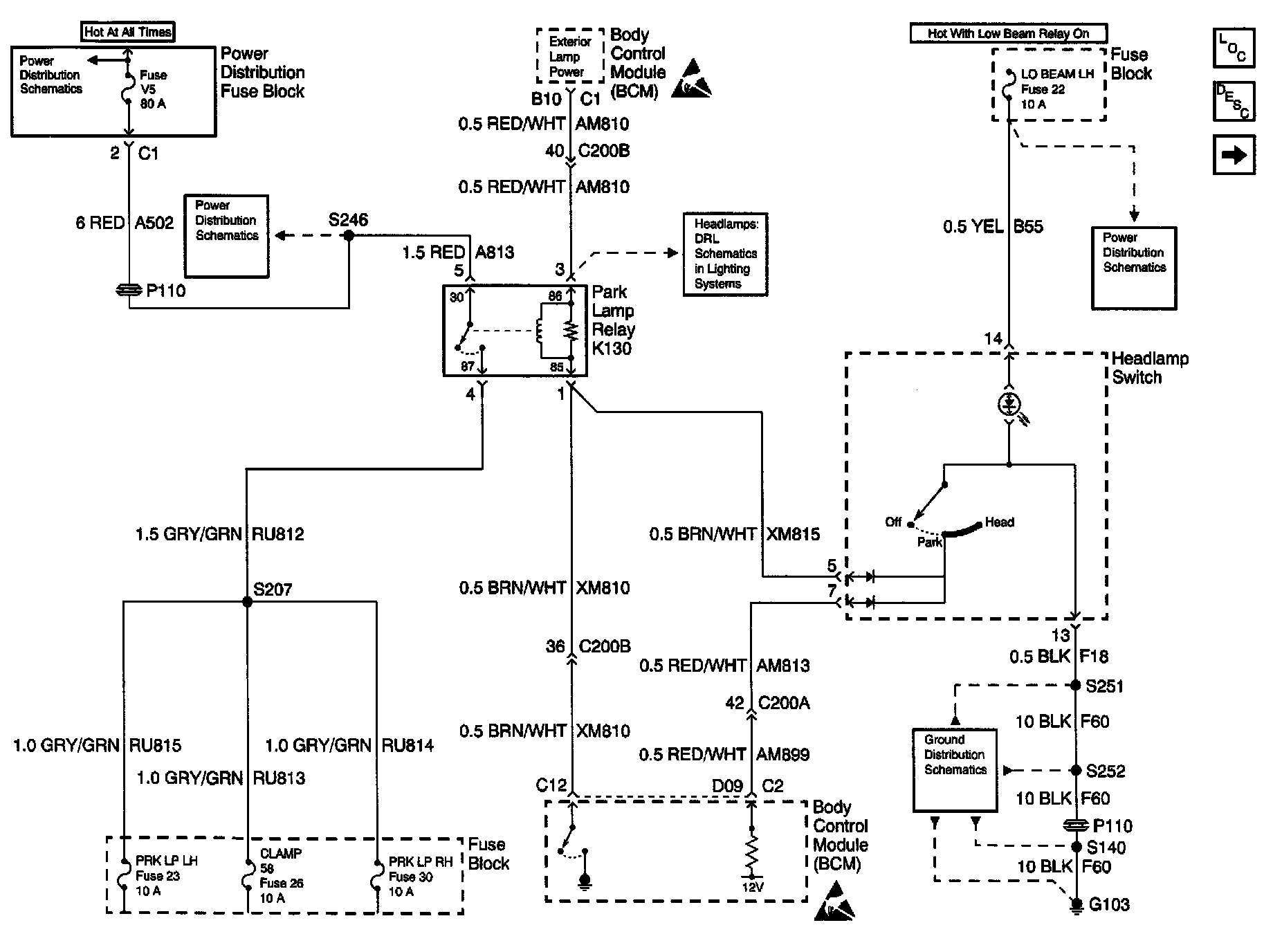

Exterior Lights Schematics: BCM Headlamp Switch Park Lamp Relay K130 And Fuse Block:
