RPM Input, LH and RH Front Brake Pad Wear Sensor
RPM Input, LH and RH Front Brake Pad Wear Sensor

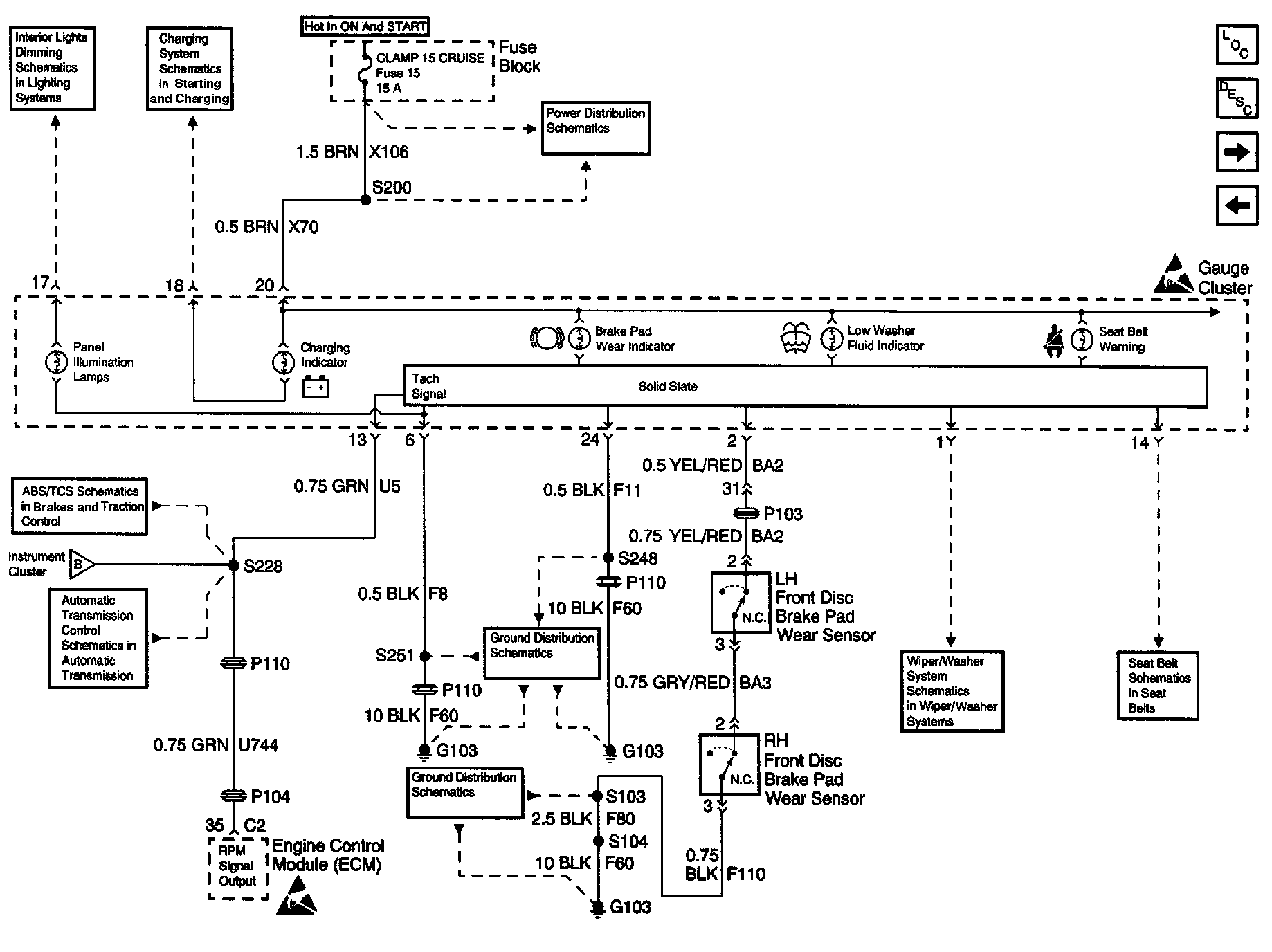

Instrument Cluster: Analog Schematics: Gauge Cluster: RPM Input, LH And RH Front Brake Pad Wear Sensor:
