Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>
Engine Coolant Temperature Gauge Sensor and Fuel Sender
Engine Coolant Temperature Gauge Sensor and Fuel Sender

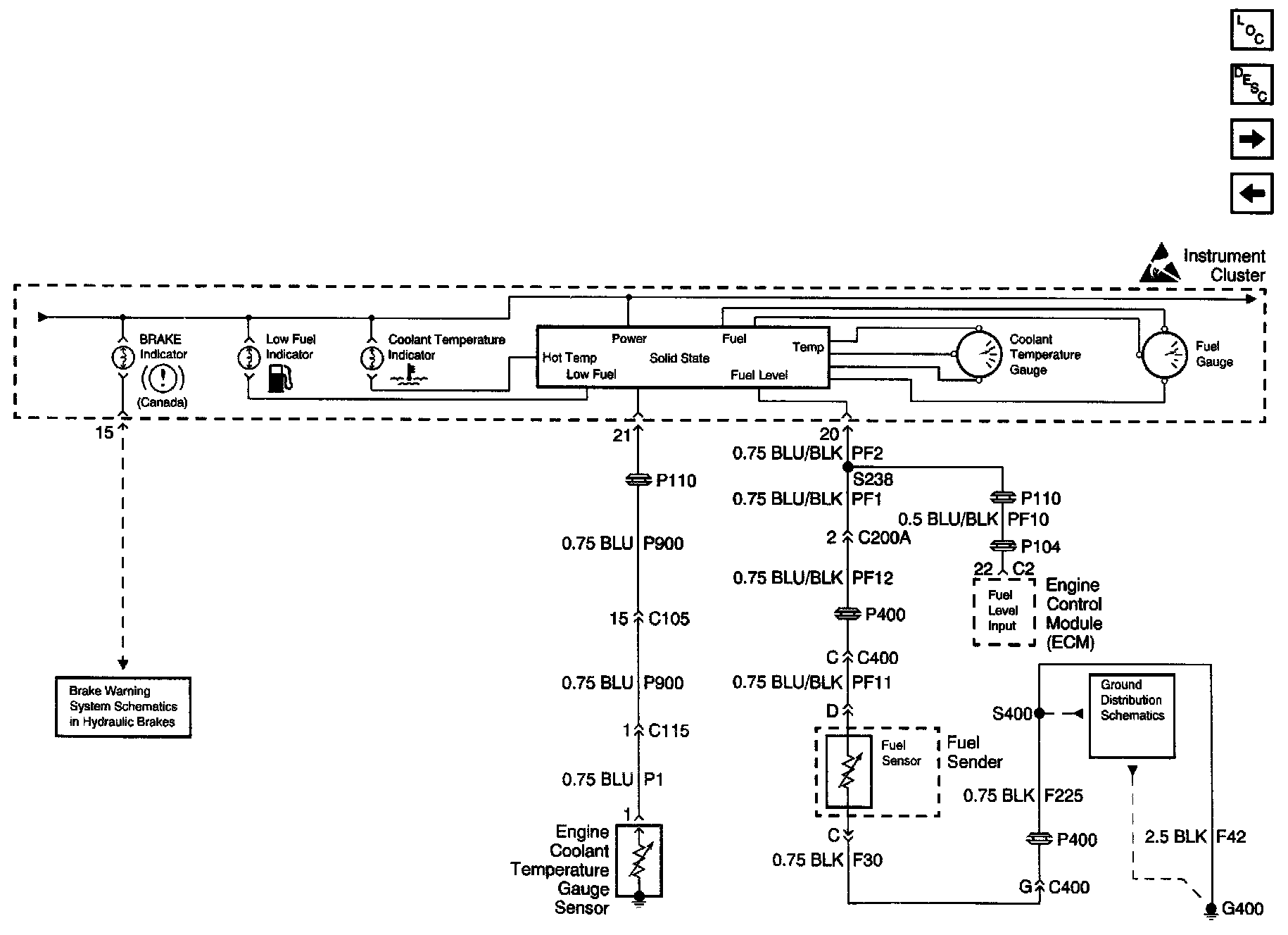

Instrument Cluster: Analog Schematics: Engine Coolant Temperature Gauge Sensor And Fuel Sender:
