FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>
DLC, Ground, and Vehicle Speed Input
DLC, Ground, and Vehicle Speed Input

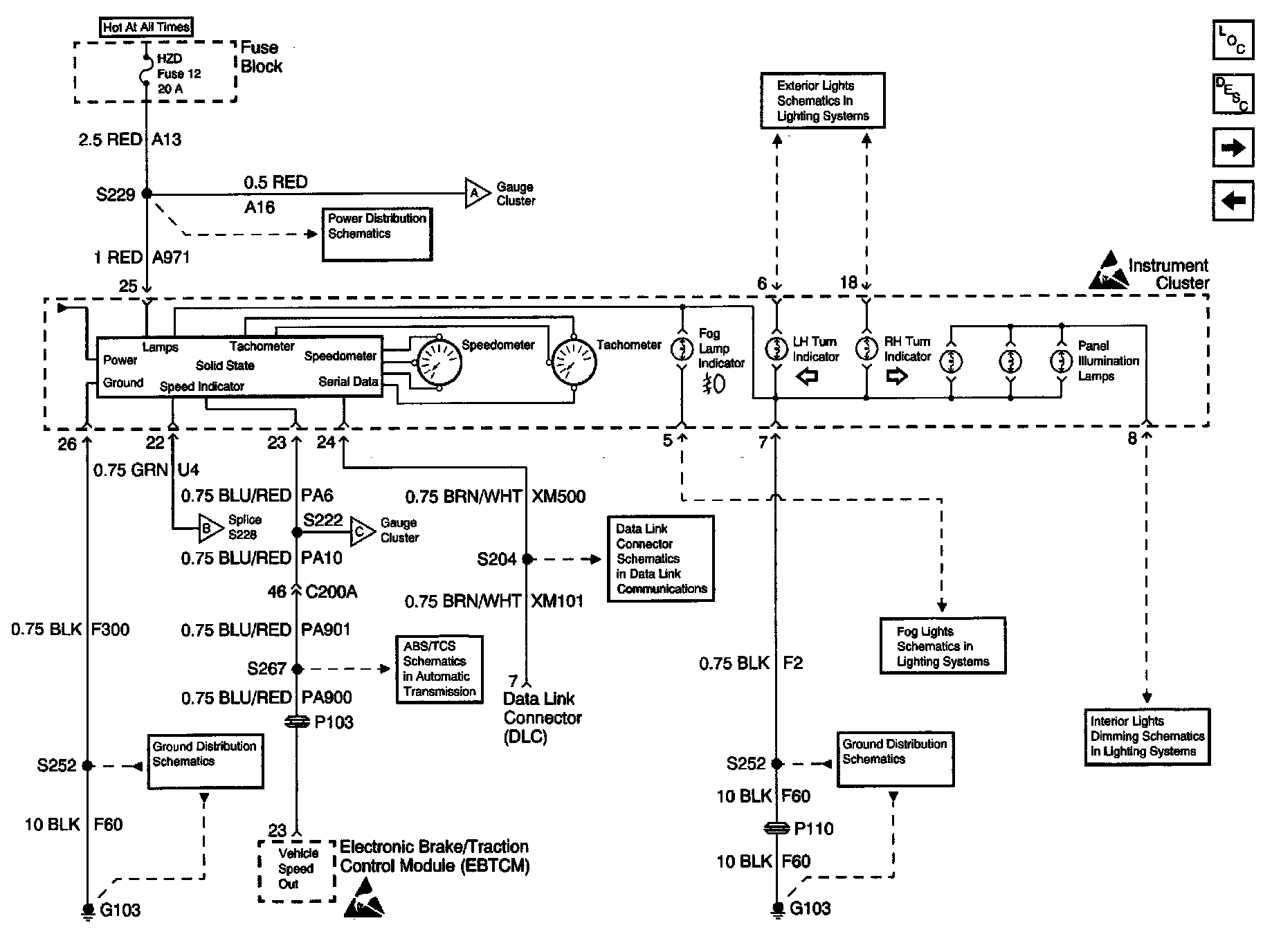

Instrument Cluster: Analog Schematics: DLC, Ground, And Vehicle Speed Input:
