LH and RH Temperature Valve Actuators

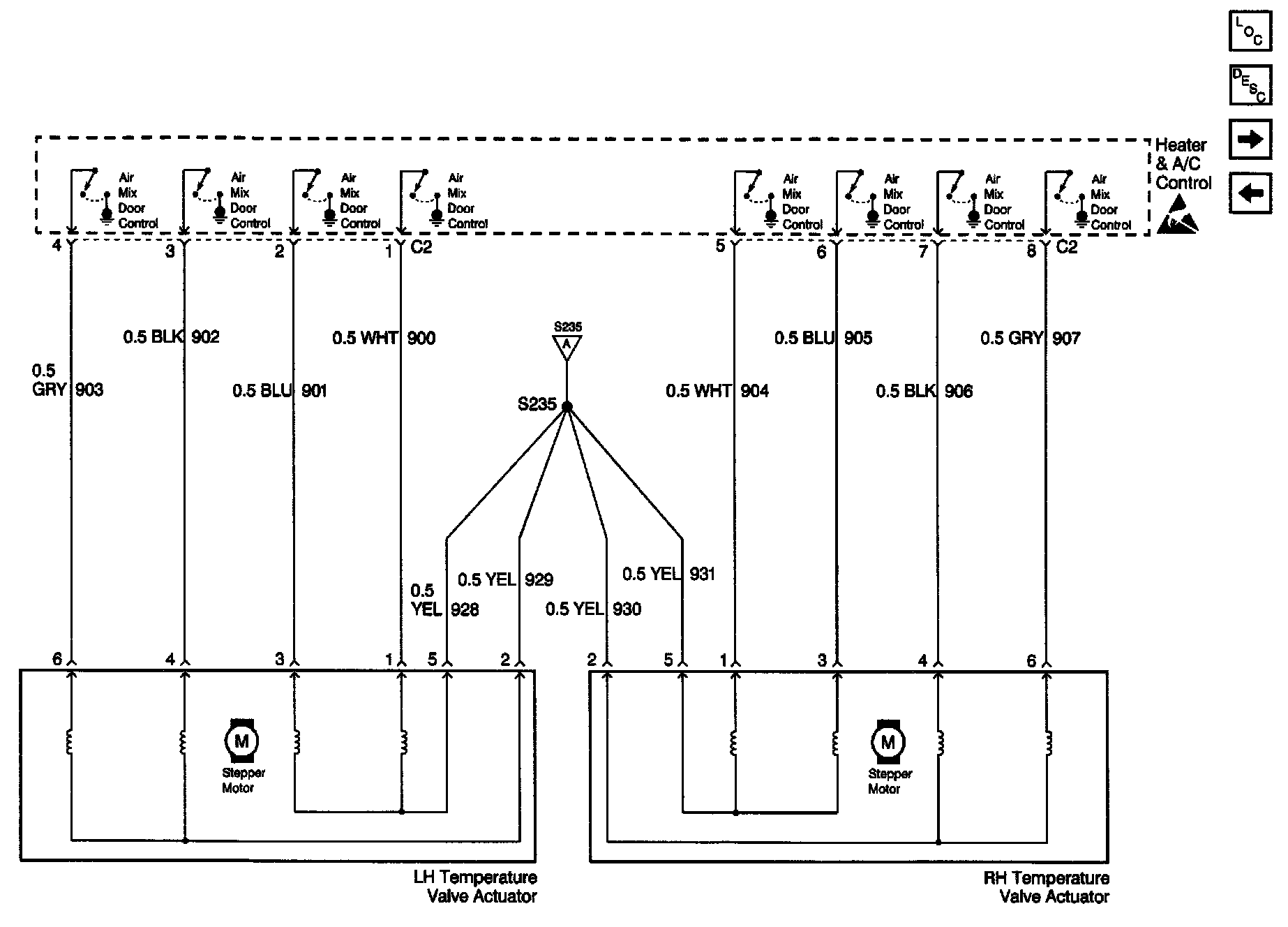

HVAC Air Delivery/Temperature Control Schematics: LH And RH Temperature Valve Actuators:
