Inside Air Valve Actuator and Floor Air Valve Actuator
Inside Air Valve Actuator and Floor Air Valve Actuator

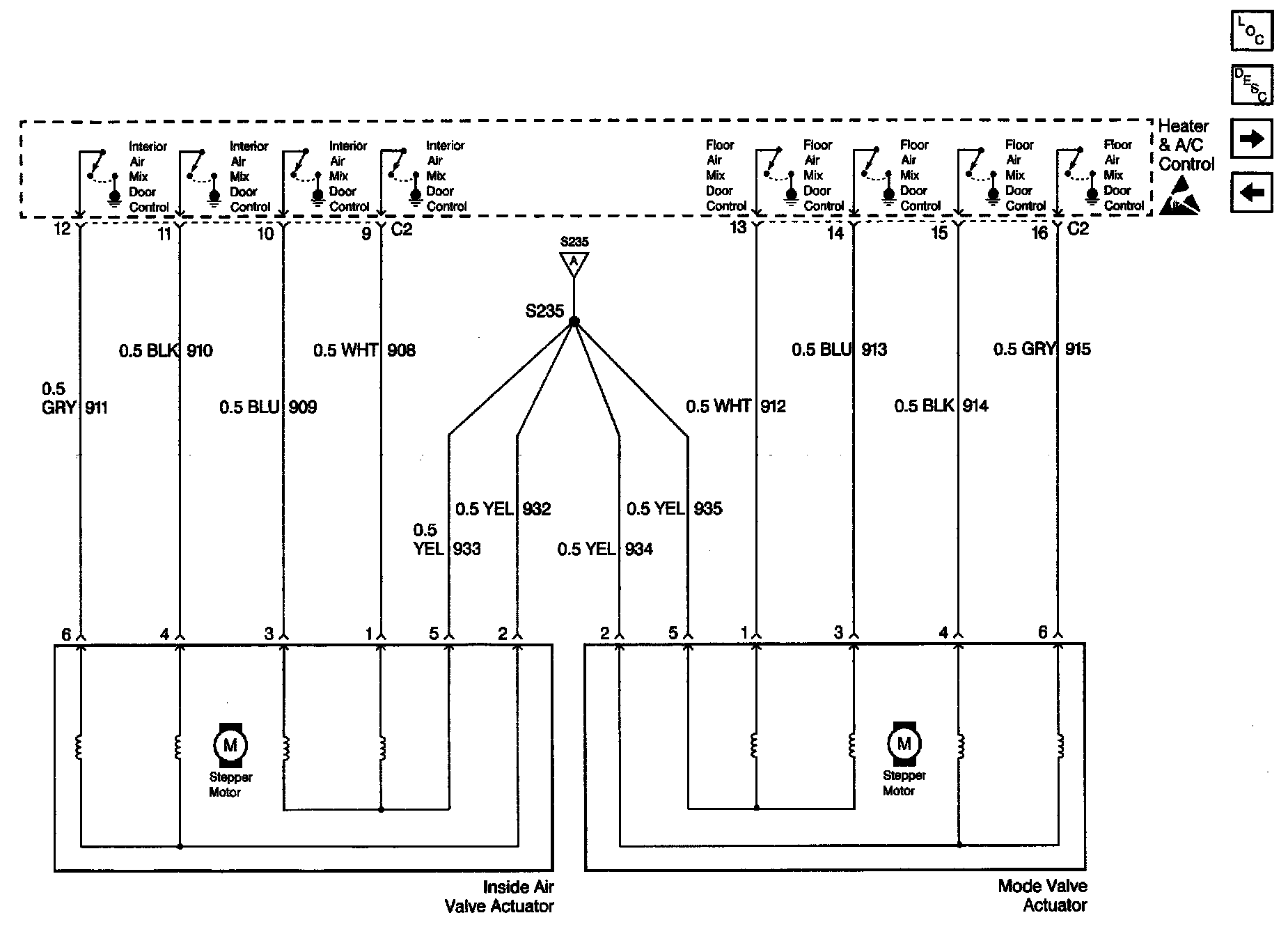

HVAC Air Delivery/Temperature Control Schematics: Inside Air Valve Actuator And Floor Air Valve Actuator:
