Air Delivery/Temperature Control Schematics: Power/Ground/DLC
Air Delivery/Temperature Control Schematics: Power/Ground/DLC

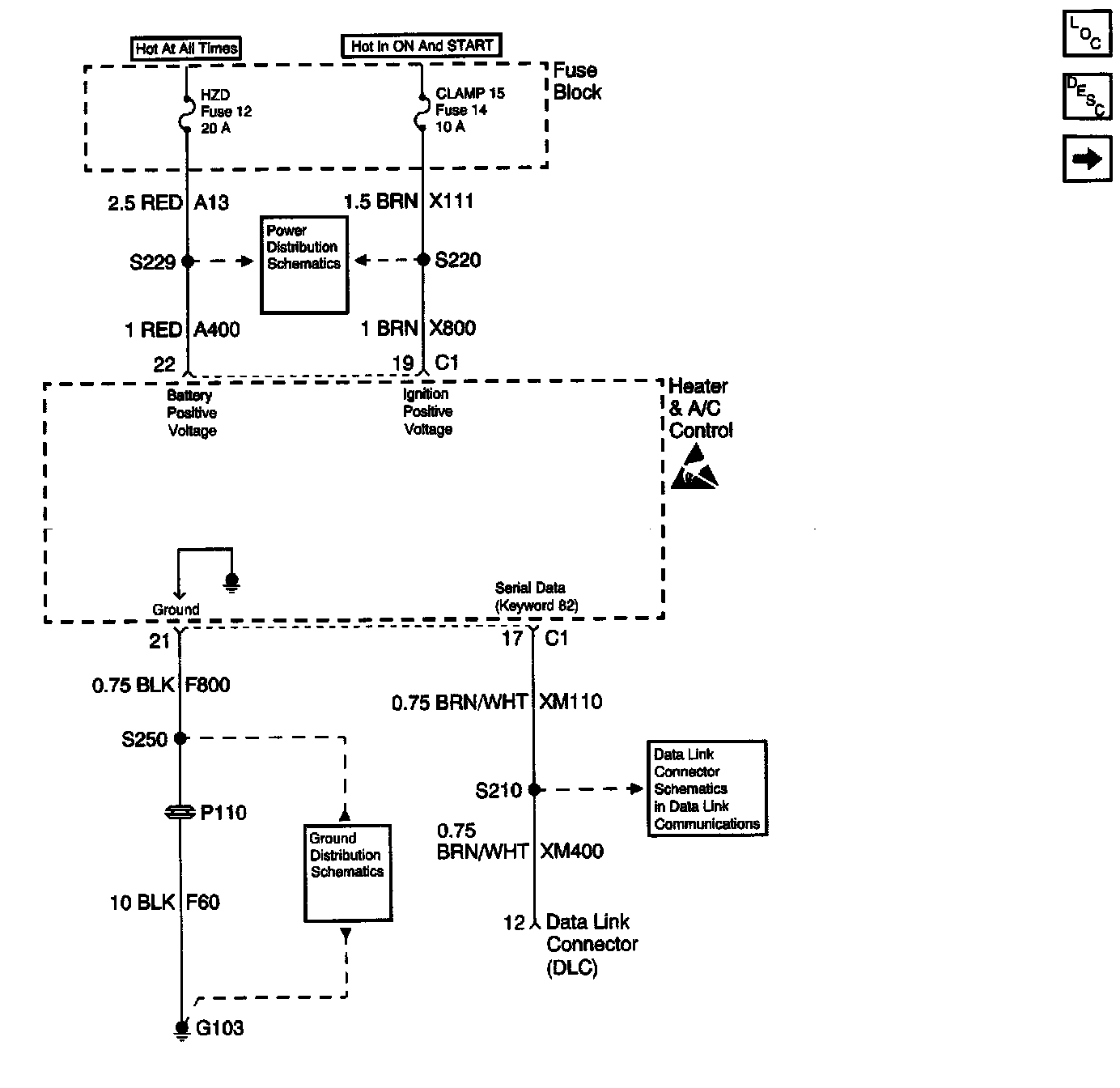

HVAC Air Delivery/Temperature Control Schematics: Power, Ground, And DLC:
