Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram >> Cruise Control Schematics >> TP Sensor and APP Sensor

TP Sensor and APP Sensor

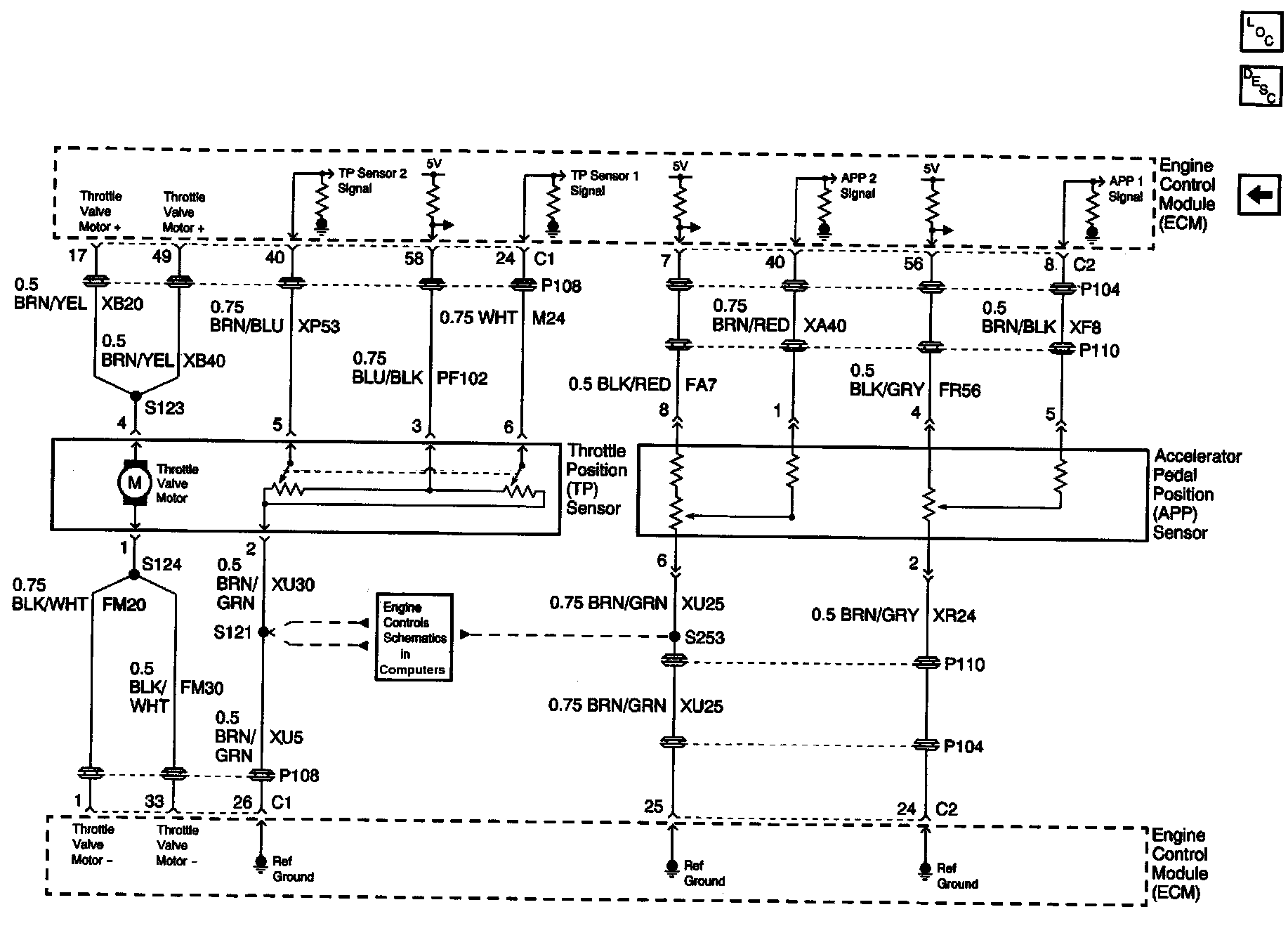

Cruise Control Schematics: TP Sensor And APP Sensor:
