Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone >> Cellular Telephone Schematics >> Base and Bose(R) System

Base and Bose(R) System

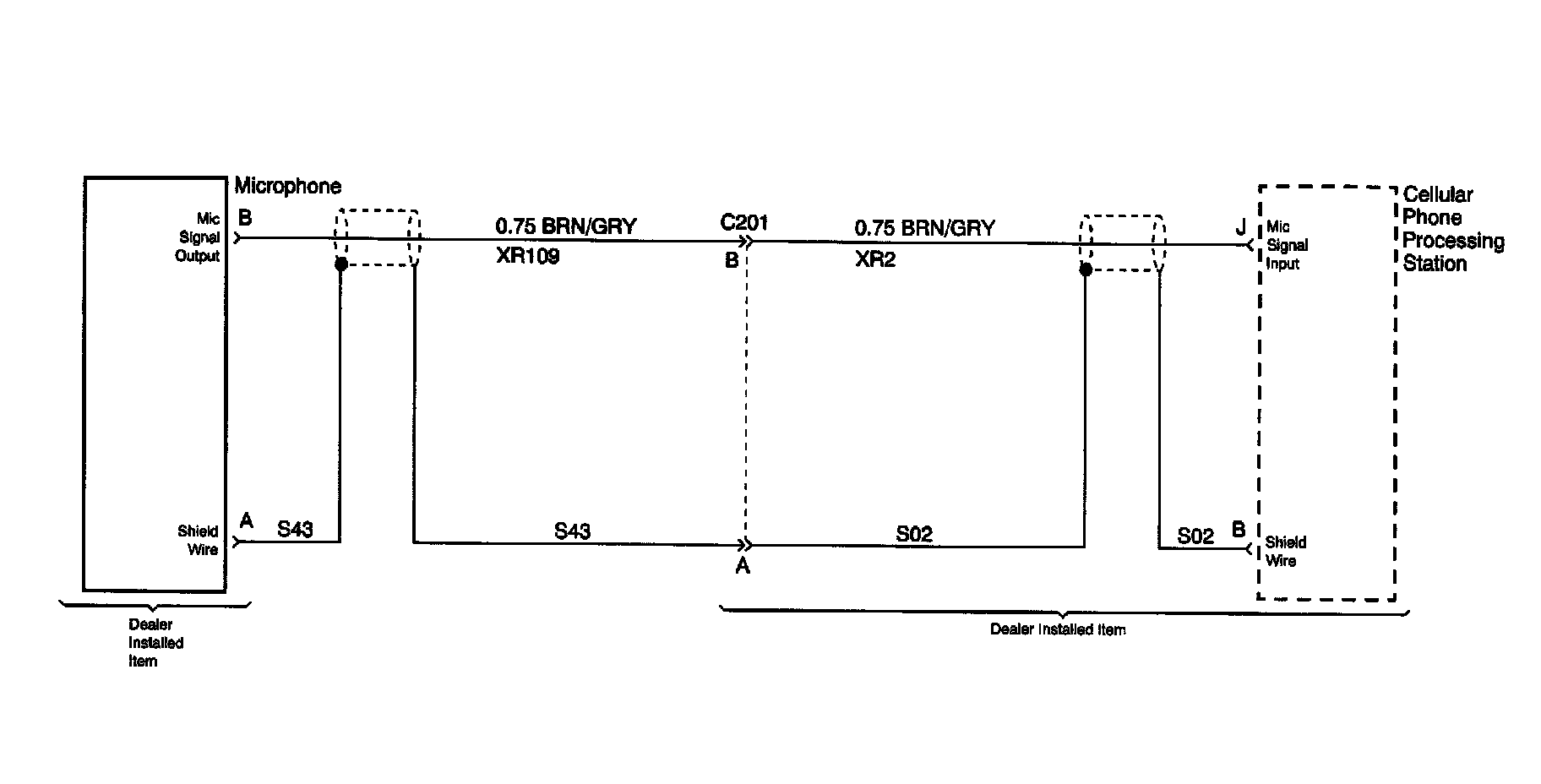

Cellular Telephone Schematics: Base And Bose(R) System: Cell Phone Processing Station And Microphone:
